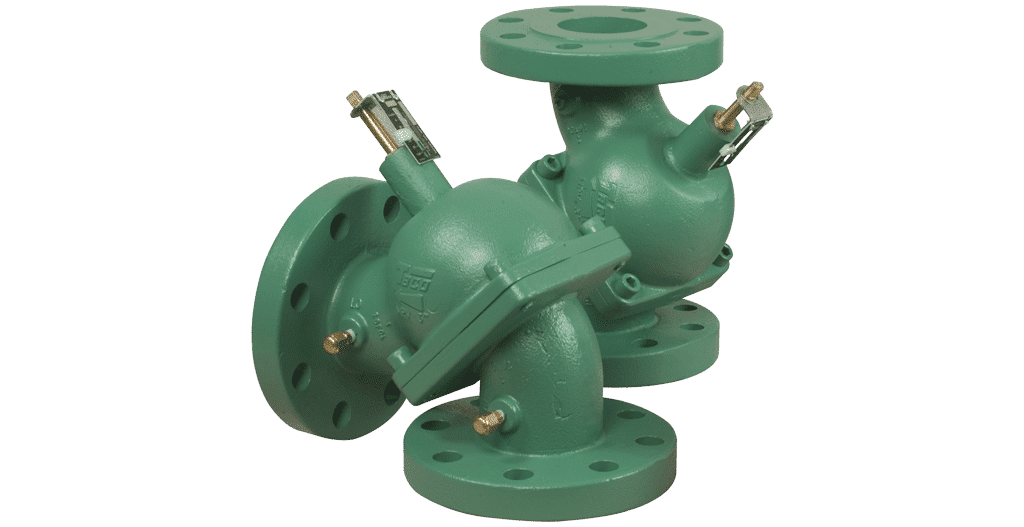

MPV030-4A | 3" Flanged Plus Two Class 250# Multi Purpose Valve (209 Cv) | Taco

Taco | MPV030-4A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MPV030-4A

Documents and manuals

Taco MPV030-4A Documents

Overview

Details for MPV030-4A

3" Flanged Plus Two Class 250# Multi Purpose Valve (209 Cv)

Straight Pattern/Angle Pattern

The Plus Two Multi-Purpose Valve offers performance– low pressure drops that are equal to or better than any valve on the market today–and convenience: You can replace the stem seal packing under full system pressure. The Plus Two Multi-Purpose Valve is made of ductile iron with stainless steel and bronze fitted construction to provide years of trouble-free service. It is available in sizes ranging from 1 ½” through 14″, with flanged connections (1 ½”, 2″ and 2 ½” units are threaded connections).

Performance Data

Range Flow: 20 – 10,000 GPM
Working Pressure: 175 PSI, 300 PSI
Connection Sizes: 1 ½”, 2″, and 2 ½”, threaded, 3″ – 14″, flanged

Features
  • Horizontal or Vertical Installation
  • Field Convertible to a Right Angle Valve
  • “O” Ring Sealed Valve Body
  • Low Pressure Drop (Equal To or Better Than Any Comparable Valve on the Market Today)

Five (5) Valves in One:

  • Shut Off Valve
  • Flow Control Valve (Globe Style)
  • Non Slam Check Valve
  • Flow Metering Valve
  • Straight Pattern Valve can be Converted to a Right Angle Pattern Valve
Applications
  • Hot Water Heating Systems
  • Closed Cooling Circuits
  • Air Conditioning Systems
  • Hydronic Heating & Cooling
  • Water/Glycol concentrations up to 50%
  • Solar / Geothermal

Taco The new Taco "Plus Two" Multi-Purpose Valve combines all the valvefunctions that are normally required on the discharge side of acentrifugal pump in a hydronic heating or cooling system into one body.It is a Shut-Off Valve, a Non-Slam Check Valve, a Balancing Valve, anda Flow Metering Valve, and now it is field convertible from a straightpattern to a 90 degree right angle pattern. In addition the new "PlusTwo" Multi-Purpose Valves have low pressure drops, equal to or betterthan any valve on the market today, and the stem seal packing can bereplaced under full system pressure.

Product Features:
  • Horizontal or Vertical Installation
  • Field Convertible to a Right Angle Valve
  • Stem Seal Packing Replaceable Under Pressure
  • Bronze Fitted Construction
  • Five (5) Valves in One:
    - Shut Off Valve
    - Flow Control Valve (Globe Style)
    - Non Slam Check Valve
    - Flow Metering Valve
    - Straight Pattern Valve can be Converted to a Right Angle Pattern Valve
  • Memory Indicator, Pointer & Scale
  • Schrader Valve Metering Connections
  • "O" Ring Sealed Valve Body
  • Replaceable “Soft Seat”
  • Low Pressure Drop (Equal to or Better than any Comparable Valve on the Market Today)

Specifications

Item Number MPV030-4A
Brand Taco
Connection Method Flanged
Connection Type Flanged x Flanged
Flow Capacity (Cv) 209
Series Plus Two Multi-Purpose Valve
Size 3"
Type Valve
