006-BC7-4PNP | 006 (3/4" Sweat) Taco Bronze Circulator w/ Digital Timer & Integral Flow Check, 1/40 HP | Taco

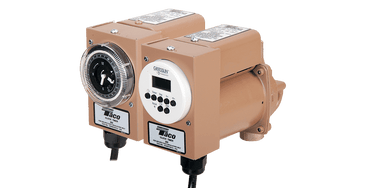

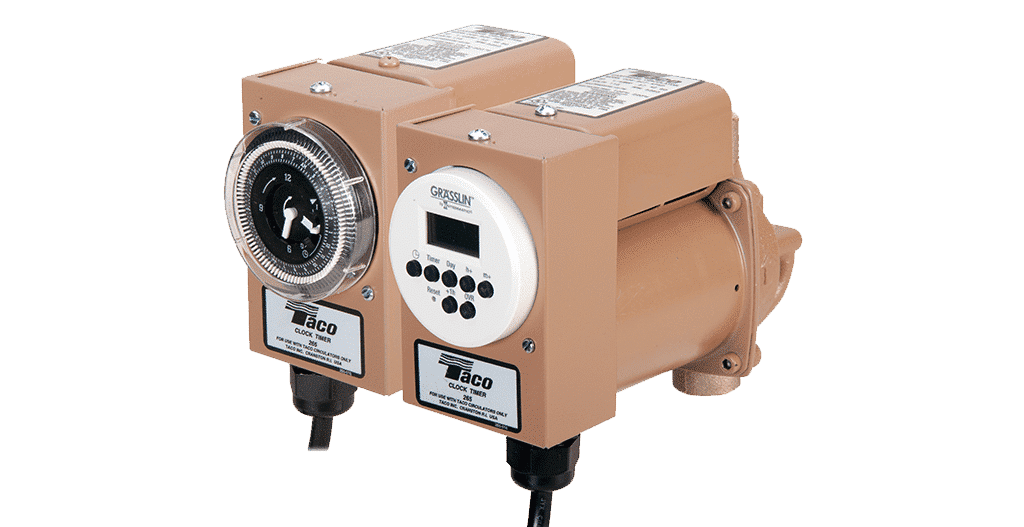

006 (3/4" Sweat) Taco Bronze Circulator w/ Digital Timer & Integral Flow Check, 1/40 HP

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Note: This item abides by the 2014 low lead requirements.

Overview
The Plumb N' Plug line of Taco circulators provides an ingenious solution to the problem of waiting for hot water from fixtures. An included timer allows you to quickly and easily designate recirculation periods for instant hot water. The digital timer is prewired, which means installation is a breeze. Setting recirculation times is equally easy; simply use the buttons on the timer face to assign them. The digital timer supports eight saved programs which can be applied to individual days, all days, weekdays, weekends, or weekdays plus Saturdays. The bronze construction of this circulator makes it ideal for DHW applications, where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.

Features

• Factory Installed 6’ Line Cord and 24 Hour/15 Minute Interval Analog Timer
• UL Listed
• Optional 95°F –115°F Aquastat Available
• Standard High Capacity Output
• Compact Design
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Unique Replaceable Cartridge
• Design-Field Serviceable
• Self Lubricating
• No Mechanical Seal
• Unmatched Reliability-Maintenance Free
• Sweat Connections - Bronze
• Union & Threaded Connections - St. Steel
• Flanged - St. Steel

Application

• Domestic Hot Water Recirculation
• Water Source Heat Pumps
• Hydro-Air Fan Coils
• Potable Water Systems
• Heat Recovery Units

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
Valve Assembly Trans/Relay: 006-047RP
