005-SF2-IFC | Circulator Pump | Stainless Steel | 1/35 HP | 115V | Single Phase | 0.54A | 3250 RPM | Flanged | 19 GPM | 9ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 005 | Taco

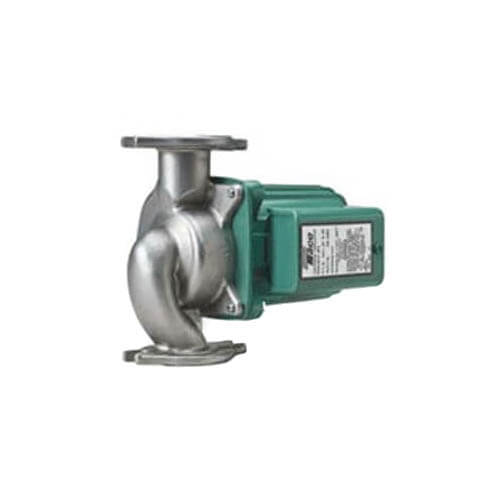

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 005-SF2-IFC

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Taco 005-SF2-IFC Documents

Datasheet Installation Instructions More Info

Overview

Details for 005-SF2-IFC

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The redesigned 005-IFC features a larger removable Integral Flow Check, designed to improve pumpperformance, simplify piping and reduce installation costs. The spring loaded IFC replaces a separate in-line flow check to ensure protection against reverse flow and gravity flow. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.

Application:

Hydronic Heating/Cooling
Hydro-Air Fan Coils
Radiant
Domestic Water Recirculation (Bronze / Stainless Steel)
Indirect Water Heaters

Features:

Integral Flow Check: Simplifies piping, Prevents reverse flow and gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
Unique replaceable cartridge-field serviceable
Unmatched reliability-maintenance free
Quiet, efficient operation
Self lubricating, No mechanical seal
Wide range of applications
Flanged connections

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
Valve Assembly Trans/Relay: 0010-025RP

Specifications

Item Number	005-SF2-IFC
Brand	Taco
Amperage	0.54
Amps	0.54A
Application	Heating
Connection Type	Flanged x Flanged
Connection	Flanged
Flow Range (GPM)	0-13.5
Head Range (ft.)	0-7.5
Hertz	60
Horse Power	1/35
HP	1/35 HP
Material	Stainless Steel
Max Flow (GPM)	13.5
Max Flow	19 GPM
Max Head (Ft)	7.5
Max Head Pressure	9ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Optional	Integral Flow Check
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250
RPM	3250 RPM
Series	Series 005
Temperature Range (F)	40°F to 230°F
Type	Pump
Voltage	115v
Warranty	3 Year
