003-ZB4-1 | Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.45A | 3250 RPM | Sweat (3/4") | 7 GPM | 4.5ft Max Head | 125 PSI Max Press. | Series 003 | Taco

Brand: TacoSKU: 003-ZB4-1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 003-ZB4-1

Overview & Specifications Reviews Parts & Accessories

Overview Details for 003-ZB4-1

Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.45A | 3250 RPM | Sweat (3/4") | 7 GPM | 4.5ft Max Head | 125 PSI Max Press. | Series 003

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems

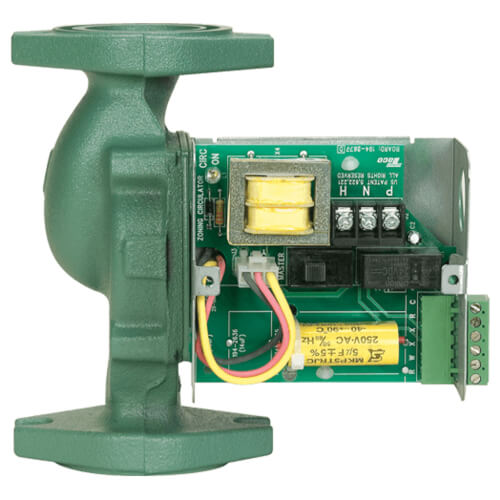

Note: Pump in photo shows cast iron construction, while actual item is bronze.

Features

3/4" Sweat Connection
Universal Thermostat Compatibility, Thermostat Ready
Can be used in conjunction with other circulators or zone valves
Available in a full range of sizes from 003-0014
00 Reliability
Snap-In PC Board
Low and High Voltage Strips
Removable low-voltage terminal strip simplifies wiring installation
LED Power Light
UL and CSA Listed
100% Factory Tested
Made in USA

Typical Applications

Indirect Hot Water Heaters
Adding Zones
Zoning with Circulators
Prioritizing Under-Sized Zones

Replacement Parts List:
Casing O-Ring: 007-003RP
Cartridge Assembly Complete: 003-001RP

Specifications

Item Number	003-ZB4-1
Brand	Taco
Amperage	0.43
Amps	0.45A
Application	Heating
Connection Size	3/4"
Connection Type	Sweat
Connection	Sweat (3/4")
Flow Range (GPM)	0-6
Head Range (ft.)	0-5
Hertz	60
Horse Power	1/40
HP	1/40 HP
Material	Bronze
Max Flow (GPM)	6
Max Flow	7 GPM
Max Head (Ft)	5
Max Head Pressure	4.5ft
Max Pressue	125 PSI
Max Pressure (PSI)	125
Optional
Phase	1
Phase	Single Phase
Pump Type	Circulator Pump
RPM	3250
RPM	3250 RPM
Series	Series 003
Temperature Range (F)	40°F - 220°F
Type	Pump
Voltage	115v
