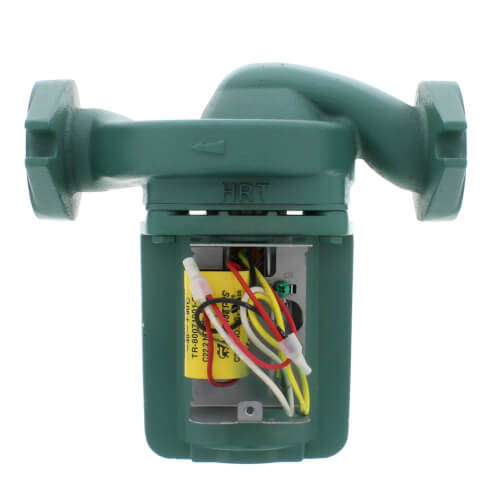

0012-F4-2IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0012 | Taco

Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0012

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

WITH 1-1/2" flanges (standard) - HV equivalent

Performance Data
Flow Range: 0-42 GPM
Head Range: 0-13 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 1-1/4", 1-1/2" Flanged
The Taco 0012-IFC with Integral Flow Check (IFC) is designed to reduce installation costs when zoning with "00" circulators on high flow/medium head applications in large residential and light commercial systems. Ideal for large BTUH Boilers, 2" recirculation loops, primary/secondary loops, commercial water heaters and light commercial heating and cooling systems. The Bronze 0012-IFC can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Available with optional Priority Zoning or Variable Speed controls.

Features
* Integral Flow Check (IFC) Patent# 5,664,939
Prevents gravity flow
Eliminates separate in-line flow check
Reduces installed cost, easy to service
Imprvoed performance vs. In-line flow checks
* Optional Variable Speed or Priority Zoning Control
* Unique replaceable cartridge-Field serviceable
* Unmatched reliability-Maintenance free
* Quiet, efficient operation
* Direct drive-Low power consumption
* Self lubricating, No mechanical seal
* Standard high capacity output-Compact design
* Wide range of applications
* Cast Iron or Bronze Construction, Flanged connections
Packed w/ 1-1/2" Flanges

Typical Applications
Large BTUH Boilers
2" Recirculation Loops
Primary/Secondary Loops
Commercial Water Heaters Light Commercial Heating and Cooling Systems

Replacement Parts List:
Casing O-Ring: 0012-006RP
Flange Gasket Set: 0012-020RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0012-011RP
Valve Assembly Trans/Relay: 0012-021RP
