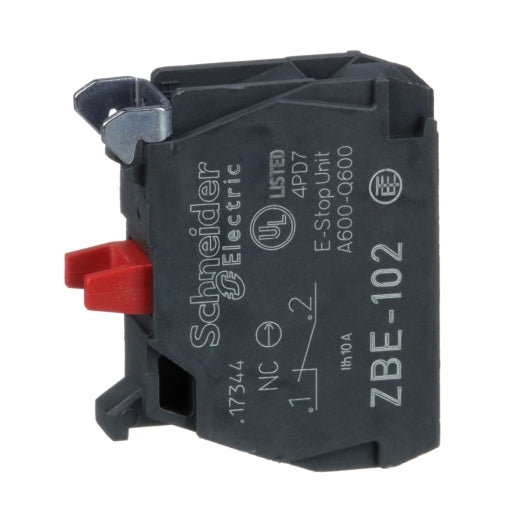

ZBE102 | Single contact block for head 22mm 1NC screw clamp terminal Pack of 5 | Square D

Brand: Square DSKU: ZBE102

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for ZBE102

Single contact block for head 22mm 1NC screw clamp terminal

: -40…70 °C
Ambient air temperature for operation: -40…70 °C
Standards: EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-1
UL 508
EN/IEC 60947-5-4
JIS C8201-1
product certifications: CSA
GOST
BV
DNV
GL
LROS (Lloyds register of shipping)
CCC
UL
Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.500 cm
Package 1 Width: 3.400 cm
Package 1 Length: 5.400 cm
Package 1 Weight: 9.000 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 5.600 cm
Package 2 Width: 4.300 cm
Package 2 Length: 5.400 cm
Package 2 Weight: 52.000 g
Unit Type of Package 3: S03
Number of Units in Package 3: 800
Package 3 Height: 30 cm
Package 3 Width: 30 cm
Package 3 Length: 40 cm
Package 3 Weight: 8.757 kg
Warranty: 18 months
