XVUZ100T | Fixing metal bracket with 100 mm aluminium pole for modular tower lights, black, dia 60 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XVUZ100T
Documents and manuals
Square D XVUZ100T Documents
Overview
Details for XVUZ100T

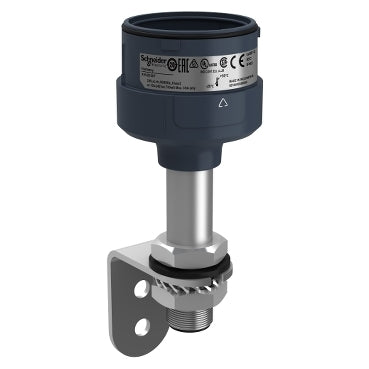

Fixing metal bracket with 100 mm aluminium pole for modular tower lights, black, dia 60
This Harmony XVU fixing plate is work with DC and AC base units. It contains base unit, support pole, and vertical fixing plate. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 100mm. It complies with CSA, UL, and CE standards and it has IP32 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.Specifications
- Range of Product
- Harmony XVU
- Product or Component Type
- Modular tower light
- accessory / separate part type
- Fixing plate
- accessory / separate part category
- Mounting and fixing accessory
- component name
- XVU
- mounting diameter
- 2.36 in (60 mm)
- pole heigth
- 3.94 in (100 mm)
- Mounting Support
- Metal bracket with pole
- product compatibility
- Top AC/DC body
- material
- PBT (polybutylene terephthalate) V-0 UL 94;ABS (acrylonitrile butadiene-styrene);PC (polycarbonate);Aluminium
- Housing Colour
- Black
- Connections - Terminals
- Push-in
- [Us] Rated Supply Voltage
- 24 V AC/DC;110...240 V AC
- Length
- 5.91 in (150 mm)
- Net Weight
- 0.49 lb(US) (0.22 kg)
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient air temperature for operation
- -13…122 °F (-25…50 °C)
- IP degree of protection
- IP32
- Product Certifications
- CSA;CE;UL
- Category
- 22618-XVU TOWER LIGHTS
- Discount Schedule
- XV
- GTIN
- 3606480887123
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.58 in (9.1 cm)
- Package 1 Width
- 7.48 in (19.0 cm)
- Package 1 Length
- 3.54 in (9.0 cm)
- Package 1 Weight
- 13.65 oz (387.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 12
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 12.53 lb(US) (5.685 kg)
