XB5S1B2L2 | Bistable Biometric switch - connection by 2m cable | Square D by Schneider Electric

Brand: Square DSKU: XB5S1B2L2

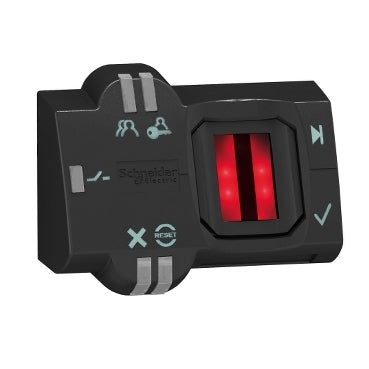

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB5S1B2L2

Jump to: Overview & Specifications Reviews

Overview Details for XB5S1B2L2

Bistable Biometric switch - connection by 2m cable

This Harmony XB5, bistable biometric switch has a pre-wired cable connection and is supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Specifications

Product or Component Type: Biometric switch
Product Specific Application: Industrial machines;Materials handling
device short name: XB5S
bezel material: Dark grey plastic
mounting diameter: 0.87 in (22 mm)
Output Type: PNP
sale per indivisible quantity: 1
IP degree of protection: IP20 EN/IEC 60529 rear face);IP65 EN/IEC 60529 front face)
type of operator: Stay put
operator position information: 2 positions
operator profile: fingerprint reader
connections - terminals: 1 pre-wired cable;3 x 0.34 mm²
memory usage: 200 users with up to 2 fingerprints per user
Enclosure Material: Polyamide PA66
cable insulation material: PvR
operating position: Horizontal position;Flat surface installation;Vertical surface installation
function of module: Bi-stable
Net Weight: 0.37 lb(US) (0.17 kg)
Marking: CE
local signalling: for output state indicator 1 LED (green);for administrator's registration mode 1 LED (orange);for operator's registration mode 1 LED (orange);for error 1 LED (red);for reset 1 LED (red)
short-circuit protection: 250 mA external fuse gG
[Us] rated supply voltage: 24 V DC
electrical connection: free wire ends 3 6.56 ft (2 m)
supply voltage limits: 20…30 V DC
Protection Type: Short-circuit;Reverse polarity;Overload protection
maximum switching current: 200 mA
[Ures] residual voltage: 1 V closed state
current consumption: <= 70 mA no-load
maximum delay first up: 3 s + 0.5 ms per user registered
maximum delay recovery: 1.5 s
maximum delay response: 1.5 s
Range of Product: Harmony XB5S
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
Ambient air temperature for operation: 23…122 °F (-5…50 °C)
NEMA degree of protection: NEMA 12
Standards: IEC 61000-6-4;IEC 61000-6-2
Product Certifications: UL;CSA
vibration resistance: +/- 3 mm 5…9 Hz)IEC 60068-2-6;1 gn 9…500 Hz)IEC 60068-2-6
shock resistance: 50 gn 11 ms IEC 60068-2-27
Category: 22471-BIOMETRIC PUSHBUTTON DO NOT NEGOT.
Discount Schedule: I
GTIN: 3606480061394
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.68 in (6.8 cm)
Package 1 Width: 3.74 in (9.5 cm)
Package 1 Length: 7.28 in (18.5 cm)
Package 1 Weight: 6.91 oz (196.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 8
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 4.20 lb(US) (1.904 kg)
Warranty: 18 months
