XB5RFA02 | Pack 22mm XB5R programble receiver AC/DC | Square D by Schneider Electric

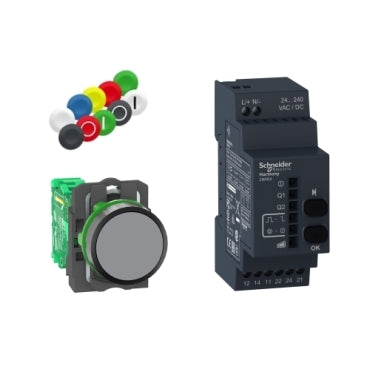

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB5RFA02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XB5RFA02 Documents

Datasheet

Overview

Details for XB5RFA02

Pack 22mm XB5R programble receiver AC/DC

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 230g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.

Specifications

Range of Product: Harmony XB5R
Product or Component Type: Wireless and batteryless package
device short name: XB5R
head material: Plastic
frequency: 2405 MHz transmitter;2405 MHz receiver
emission class: 5M00G7W
antenna type: Omnidirectional
control type: Wireless and batteryless push-button Ø 22 mm assembled on fixing collar
type of receiver: Programmable receiver 2 relays)
[Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz
kit composition: 1 transmitter;1 set of caps;1 receiver;1 fixing collars;1 0.87 in (22 mm);1 push-button head 0.87 in (22 mm)
status LED: 1 LED Green power ON;2 LEDs Green relay ON;2 LEDs Green function mode;1 LED green and yellow reception signal
communication port protocol: Zigbee IEEE 802.15.4
max power consumption in W: 1 mW
Number of Channels: 1
Modulation technique: O-QPSK
bandwidth: 5 MHz
antenna gain: 0 dBi
customizable: No
compatibility code: XB5R
Product Certifications: UL;CCC;GOST;CSA;C-tick
Marking: CE
Standards: CSA C22.2 No 14;EN/IEC 60947-5-1;UL 508;EN/IEC 60947-1
radio agreement: SRRC;RSS;ARIB T66;FCC;ICASA;ANATEL
Category: 22470-XB5R WIRELESS PUSH BUTTON
Discount Schedule: I
GTIN: 3606480334450
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.66 in (9.3 cm)
Package 1 Width: 4.13 in (10.5 cm)
Package 1 Length: 4.25 in (10.8 cm)
Package 1 Weight: 7.83 oz (222 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 16
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 8.93 lb(US) (4.05 kg)
Warranty: 18 months
