XB5AA25 | Push button, plastic, flush, black, Ø22, spring return, unmarked, 1 NO + 1 NC | Square D by Schneider Electric

Brand: Square DSKU: XB5AA25

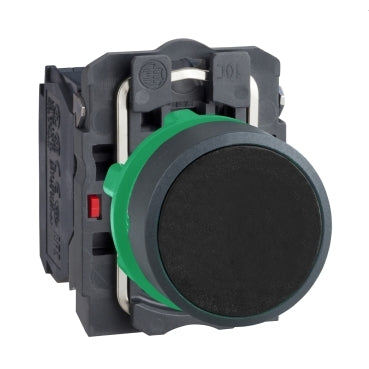

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB5AA25

Jump to: Overview & Specifications Reviews

Overview Details for XB5AA25

Push button, plastic, flush, black, Ø22, spring return, unmarked, 1 NO + 1 NC

This Harmony XB5, flush modular black push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Push-button
device short name: XB5
bezel material: Plastic;Dark grey plastic
head type: Standard
fixing collar material: Plastic
mounting diameter: 0.87 in (22 mm)
sale per indivisible quantity: 1
shape of signaling unit head: Round
type of operator: spring return
operator profile: Black flush;unmarked
contacts type and composition: 1 NO + 1 NC
contact operation: Slow-break
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Height: 1.65 in (42 mm)
Width: 1.18 in (30 mm)
Depth: 2.05 in (52 mm)
terminals description ISO n°1: (13-14)NO;(21-22)NC
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
contacts usage: Standard contacts
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 3.5 N NC changing electrical state;3.8 N NO changing electrical state
mechanical durability: 10000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
device presentation: Complete product
customizable: No
customizable: 1
GCR BRIDGE: XB5AACUST04
compatibility code: XB5
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK03 IEC 50102
Standards: UL 508;JIS C8201-5-1;EN/IEC 60947-5-4;EN/IEC 60947-5-1;EN/IEC 60947-1;CSA C22.2 No 14;JIS C8201-1
Product Certifications: DNV;UL Listed;GL;BV;CSA;RINA;LROS (Lloyds register of shipping)
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22467-PUSHBUTTONS;22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 3389110842173
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.26 in (3.2 cm)
Package 1 Width: 2.13 in (5.4 cm)
Package 1 Length: 3.23 in (8.2 cm)
Package 1 Weight: 1.59 oz (45.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 100
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 11.06 lb(US) (5.015 kg)
Warranty: 18 months
