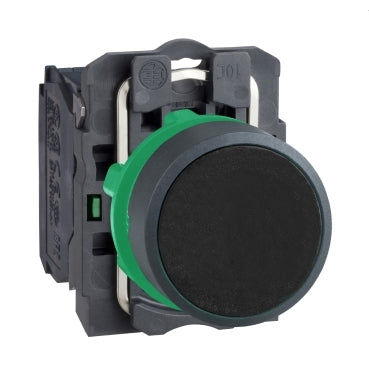

HARMONY XB5 BLACK FLUSH COMPLETE PUSHBUTTON 22 MM SPRING RETURN 1NO UNMARKED
This Harmony XB5, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.Specifications
- Range of Product
- Harmony XB5
- Product or Component Type
- Push-button
- device short name
- XB5
- bezel material
- Plastic;Dark grey plastic
- head type
- Standard
- fixing collar material
- Plastic
- mounting diameter
- 0.87 in (22 mm)
- sale per indivisible quantity
- 1
- shape of signaling unit head
- Round
- type of operator
- spring return
- operator profile
- Black flush;unmarked
- contacts type and composition
- 1 NO
- contact operation
- Slow-break
- connections - terminals
- Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- Height
- 1.65 in (42 mm)
- Width
- 1.18 in (30 mm)
- Depth
- 2.05 in (52 mm)
- terminals description ISO n°1
- (13-14)NO
- Net Weight
- 0.08 lb(US) (0.037 kg)
- resistance to high pressure washer
- 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- contacts usage
- Standard contacts
- positive opening
- Without
- operating travel
- 0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
- operating force
- 3.8 N NO changing electrical state
- mechanical durability
- 10000000 cycles
- tightening torque
- 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
- shape of screw head
- Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
- contacts material
- Silver alloy (Ag/Ni)
- short-circuit protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A EN/IEC 60947-5-1
- [Ui] rated insulation voltage
- 600 V 3)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV EN/IEC 60947-1
- [Ie] rated operational current
- 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
- electrical durability
- 1000000 cycles AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- electrical reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- device presentation
- Complete product
- customizable
- No
- customizable
- 1
- GCR BRIDGE
- XB5AACUST01
- compatibility code
- XB5
- protective treatment
- TH
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient air temperature for operation
- -40…158 °F (-40…70 °C)
- overvoltage category
- Class II IEC 60536
- IP degree of protection
- IP66 IEC 60529;IP67;IP69;IP69K
- NEMA degree of protection
- NEMA 13;NEMA 4X
- IK degree of protection
- IK03 IEC 50102
- Standards
- EN/IEC 60947-1;UL 508;JIS C8201-5-1;EN/IEC 60947-5-4;EN/IEC 60947-5-1;CSA C22.2 No 14;JIS C8201-1
- Product Certifications
- UL Listed;CSA;RINA;BV;DNV;LROS (Lloyds register of shipping);GL
- vibration resistance
- 5 gn 2…500 Hz)IEC 60068-2-6
- shock resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Category
- 22467-PUSHBUTTONS;22MM(PLASTIC) NEW
- Discount Schedule
- CS2
- GTIN
- 3389110903386
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.38 in (3.500 cm)
- Package 1 Width
- 2.17 in (5.500 cm)
- Package 1 Length
- 3.35 in (8.500 cm)
- Package 1 Weight
- 1.27 oz (36.000 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 150
- Package 2 Height
- 11.81 in (30.000 cm)
- Package 2 Width
- 11.81 in (30.000 cm)
- Package 2 Length
- 15.75 in (40.000 cm)
- Package 2 Weight
- 13.10 lb(US) (5.940 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 1200
- Package 3 Height
- 29.53 in (75.000 cm)
- Package 3 Width
- 31.50 in (80.000 cm)
- Package 3 Length
- 23.62 in (60.000 cm)
- Package 3 Weight
- 122.40 lb(US) (55.520 kg)
- Warranty
- 18 months
