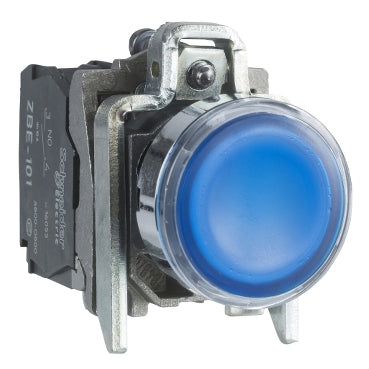

Illuminated push button, metal, flush, blue, Dia 22, spring return, 110...120 V AC, 1 NO + 1 NC

This Harmony XB4 illuminated modular blue push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Illuminated push-button
device short name: XB4
bezel material: Chromium plated metal
fixing collar material: Zamak
mounting diameter: 0.87 in (22 mm)
sale per indivisible quantity: 1
head type: Standard
shape of signaling unit head: Round
type of operator: spring return
operator profile: Blue flush
operator additional information: With plain lens
contacts type and composition: 1 NO + 1 NC
contact operation: Slow-break
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
light source: Universal LED
bulb base: Integral LED
[Us] rated supply voltage: 110...120 V AC 50/60 Hz
Height: 1.85 in (47 mm)
Width: 1.18 in (30 mm)
Depth: 3.98 in (101 mm)
terminals description ISO n°1: (21-22)NC;(13-14)NO
Net Weight: 0.21 lb(US) (0.097 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
contacts usage: Standard contacts
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 3.5 N NC changing electrical state;3.8 N
mechanical durability: 10000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
signalling type: Steady
Current Consumption: 14 mA
service life: 100000 h at rated voltage and 25 °C
surge withstand: 1 kV IEC 61000-4-5
supply voltage limits: 100…132 V AC
device presentation: Complete product
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -40…158 °F (-40…70 °C)
electrical shock protection class: Class I IEC 60536
IP degree of protection: IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK06 IEC 50102
Standards: JIS C8201-5-1;EN/IEC 60947-1;EN/IEC 60947-5-4;EN/IEC 60947-5-5;CSA C22.2 No 14;UL 508;EN/IEC 60947-5-1;JIS C8201-1
Product Certifications: LROS (Lloyds register of shipping);BV;UL Listed;CSA;DNV;GL
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients: 2 kV IEC 61000-4-4
resistance to electromagnetic fields: 9.14 V/m (10 V/m) IEC 61000-4-3
resistance to electrostatic discharge: 6 kV on contact (on metal parts) IEC 61000-4-2;8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission: Class B IEC 55011
Category: 22468-PUSHBUTTONS;22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3389110119763
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.38 in (3.5 cm)
Package 1 Width: 2.13 in (5.4 cm)
Package 1 Length: 3.62 in (9.2 cm)
Package 1 Weight: 3.39 oz (96.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 100
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 22.26 lb(US) (10.097 kg)
Warranty: 18 months
