Documents: XB4BL734155

Datasheet

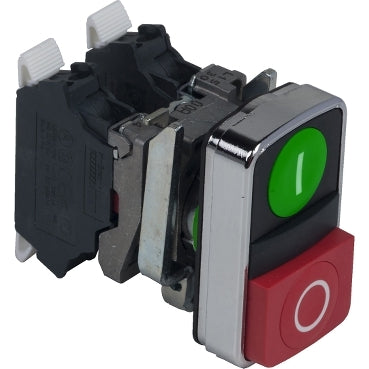

XB4BL734155 | GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSHBUTTON Dia 22 1NO+1NC | Square D by Schneider Electric

Brand: Square DSKU: XB4BL734155

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB4BL734155

Jump to: Overview & Specifications Reviews

Overview Details for XB4BL734155

GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSHBUTTON Dia 22 1NO+1NC

GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSHBUTTON

Mounting Diameter : 0.87 in (22 mm)
Shape of signaling unit head : Rectangular
Type of operator : Spring return
Operators description : Green "I" - red "O"
Contacts type and composition : 1 NO + 1 NC

This double-headed push-button provides a complete 2 buttons interface to your machines with a single panel cut-out Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections High performance International standards & certifications ( Marine certification, IP65, Type 4, 13 and 4X)

Specifications

Range of Product: Harmony XB4
Product or Component Type: Double-headed push-button
device short name: XB4
bezel material: Chromium plated metal
fixing collar material: Zamak
head type: Standard
mounting diameter: 0.87 in (22 mm)
shape of signaling unit head: Rectangular
type of operator: spring return
operator profile: 1 flush - 1 projecting push-buttons
operators description: Green ''I'' - red ''O''
contacts type and composition: 1 NO + 1 NC
contact operation: Slow-break
connections - terminals: Spring clamp terminal;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Spring clamp terminals;>= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Net Weight: 0.26 lb(US) (0.116 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
colour of marking: White marking when green;red or black caps;Black marking when white caps
operator profile: Green flush;I white);Red projecting;O white)
contacts usage: Standard contacts
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 3.5 N NC changing electrical state;3.8 N NO changing electrical state
mechanical durability: 1000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross JIS No 1;Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN 60947-1
[Ie] rated operational current: 10 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical reliability: Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
device presentation: Complete product
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -13…158 °F (-25…70 °C)
electrical shock protection class: Class I IEC 60536
IP degree of protection: IP67 IEC 60529;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK06 IEC 50102
Standards: EN/IEC 60947-1;EN/IEC 60947-5-4;UL 508;CSA C22.2 No 14;EN/IEC 60947-5-5;JIS C8201-5-1;EN/IEC 60947-5-1;JIS C8201-1
Product Certifications: UL Listed;CSA;DNV;BV;GL;LROS (Lloyds register of shipping)
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22468-PUSHBUTTONS;22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3606480360725
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.39 in (8.6 cm)
Package 1 Width: 1.30 in (3.3 cm)
Package 1 Length: 2.09 in (5.3 cm)
Package 1 Weight: 4.09 oz (116.0 g)
Warranty: 18 months
