XB4BA45 | Red Flush Complete Pushbutton XB4 - 22 mm - 1NO + 1NC - Spring Return | Square D by Schneider Electric

Brand: Square DSKU: XB4BA45

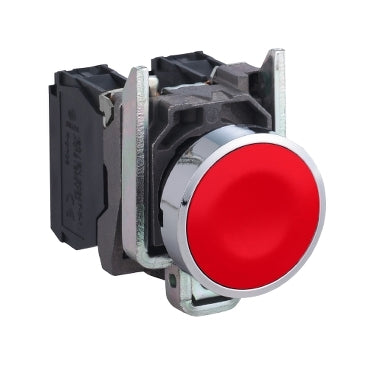

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB4BA45

Jump to: Overview & Specifications Reviews

Overview Details for XB4BA45

Red Flush Complete Pushbutton XB4 - 22 mm - 1NO + 1NC - Spring Return

This push-button provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 13 and 4X)

Specifications

Product or Component Type: Push-button
device short name: XB4
bezel material: Chromium plated metal
fixing collar material: Zamak
mounting diameter: 0.87 in (22 mm)
sale per indivisible quantity: 1
shape of signaling unit head: Round
type of operator: spring return
operator profile: Red flush;unmarked
head type: Standard
contacts type and composition: 1 NO + 1 NC
contact operation: Slow-break
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Height: 1.85 in (47 mm)
Width: 1.18 in (30 mm)
Depth: 2.05 in (52 mm)
terminals description ISO n°1: (13-14)NO
Net Weight: 0.18 lb(US) (0.08 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
contacts usage: Standard contacts
positive opening: Without
operating travel: 0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 3.8 N NO changing electrical state
mechanical durability: 10000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
device presentation: Complete product
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -40…158 °F (-40…70 °C)
overvoltage category: Class I IEC 60536
IP degree of protection: IP66 IEC 60529;IP67 IEC 60529;IP69 IEC 60529;IP69K IEC 60529
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK06 IEC 50102
Standards: EN/IEC 60947-1;EN/IEC 60947-5-4;JIS C8201-5-1;EN/IEC 60947-5-1;EN/IEC 60947-5-5;UL 508;CSA C22.2 No 14;JIS C8201-1
Product Certifications: GL;UL Listed;CSA;LROS (Lloyds register of shipping);DNV;BV
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22468-PUSHBUTTONS;22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3606480502316
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.38 in (3.500 cm)
Package 1 Width: 2.13 in (5.400 cm)
Package 1 Length: 3.46 in (8.800 cm)
Package 1 Weight: 3.10 oz (88 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 100
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 20.51 lb(US) (9.304 kg)
Warranty: 18 months
