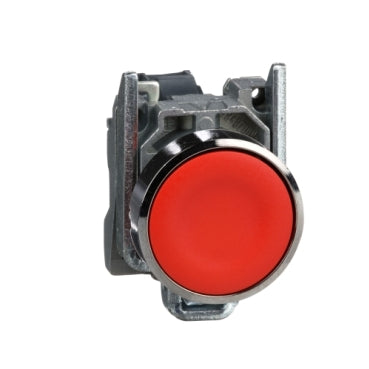

XB4BA42 | Harmony Red Flush Complete Pushbutton, 22mm, Spring Return, 1 NC "unmarked" | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XB4BA42
Documents and manuals
Square D XB4BA42 Documents
Overview
Details for XB4BA42
Harmony Red Flush Complete Pushbutton, 22mm, Spring Return, 1 NC "unmarked"
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.Specifications
- Range of Product
- Harmony XB4
- Product or Component Type
- Push-button
- device short name
- XB4
- bezel material
- Chromium plated metal
- fixing collar material
- Zamak
- mounting diameter
- 0.87 in (22 mm)
- sale per indivisible quantity
- 1
- shape of signaling unit head
- Round
- type of operator
- spring return
- operator profile
- Red flush;unmarked
- head type
- Standard
- contacts type and composition
- 1 NC
- contact operation
- Slow-break
- connections - terminals
- Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- Height
- 1.85 in (47 mm)
- Width
- 1.18 in (30 mm)
- Depth
- 2.05 in (52 mm)
- terminals description ISO n°1
- (21-22)NC
- Net Weight
- 0.18 lb(US) (0.08 kg)
- resistance to high pressure washer
- 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- contacts usage
- Standard contacts
- positive opening
- With EN/IEC 60947-5-1 appendix K
- operating travel
- 0.06 in (1.5 mm) NC changing electrical state);0.17 in (4.3 mm) total travel)
- operating force
- 3.5 N NC changing electrical state
- mechanical durability
- 10000000 cycles
- tightening torque
- 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
- shape of screw head
- Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
- contacts material
- Silver alloy (Ag/Ni)
- short-circuit protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A EN/IEC 60947-5-1
- [Ui] rated insulation voltage
- 600 V 3)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV EN/IEC 60947-1
- [Ie] rated operational current
- 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
- electrical durability
- 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- electrical reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- device presentation
- Complete product
- protective treatment
- TH
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient air temperature for operation
- -40…158 °F (-40…70 °C)
- overvoltage category
- Class I IEC 60536
- IP degree of protection
- IP66 IEC 60529;IP67;IP69;IP69K
- NEMA degree of protection
- NEMA 13;NEMA 4X
- IK degree of protection
- IK06 IEC 50102
- Standards
- EN/IEC 60947-5-5;UL 508;CSA C22.2 No 14;EN/IEC 60947-5-4;EN/IEC 60947-1;JIS C8201-5-1;EN/IEC 60947-5-1;JIS C8201-1
- Product Certifications
- LROS (Lloyds register of shipping);GL;BV;CSA;DNV;UL Listed
- vibration resistance
- 5 gn 2…500 Hz)IEC 60068-2-6
- shock resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Category
- 22468-PUSHBUTTONS;22MM(METAL) NEW
- Discount Schedule
- CS2
- GTIN
- 3389110886962
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.38 in (3.500 cm)
- Package 1 Width
- 2.17 in (5.500 cm)
- Package 1 Length
- 3.35 in (8.500 cm)
- Package 1 Weight
- 2.79 oz (79.000 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 150
- Package 2 Height
- 11.81 in (30.000 cm)
- Package 2 Width
- 11.81 in (30.000 cm)
- Package 2 Length
- 15.75 in (40.000 cm)
- Package 2 Weight
- 27.05 lb(US) (12.268 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 1200
- Package 3 Height
- 29.53 in (75.000 cm)
- Package 3 Width
- 31.50 in (80.000 cm)
- Package 3 Length
- 23.62 in (60.000 cm)
- Package 3 Weight
- 234.01 lb(US) (106.144 kg)
- Warranty
- 18 months
