XAPA1110 | Harmony Empty control station - XAP-A - plastic - 1 opening | Square D by Schneider Electric

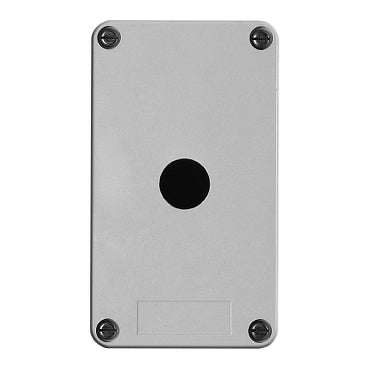

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XAPA1110

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XAPA1110 Documents

Datasheet

Overview

Details for XAPA1110

Harmony Empty control station - XAP-A - plastic - 1 opening

Harmony Empty control station - XAP-A

Mounting diameter: 22 mm
Product front plate size : 85 x 146 mm
Usable depth : 83 mm
Colour of base of enclosure : Grey
Device mounting : Flush

This Harmony XAPA1110 is an empty control station plastic 1 opening. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.

Specifications

Range of Product: Harmony XAP
Product or Component Type: Empty control station without hinges
device short name: XAPA
product destination: For Ø 22 mm control and signalling units
product front plate size: 85 x 146 mm
usable depth: 3.27 in (83 mm)
number of cut-out: 1 cut-out
colour of base of enclosure: Grey
colour of cover: Grey
Material: Glass reinforced polyester
cable entry: Undrilled
device mounting: Flush
IP degree of protection: IP65 IEC 60529;IP69 NF C 20-010;IP69K
resistance to chemical agents: High resistant to acids;High resistant to all solvents;High resistant to bases;High resistant to diesel;High resistant to mineral salts;High resistant to oils and greases;High resistant to petrol;High resistant to sea water
number of vertical rows: 1
flame retardance: M3 conforming to CSTB;VO conforming to UL 94
Net Weight: 0.99 lb(US) (0.45 kg)
protective treatment: TH;TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536;Class II NF C 20-030
fire resistance: 1562 °F (850 °C) NF C 20-455;1760 °F (960 °C) IEC 92
Category: 22475-WALL STATIONS
Discount Schedule: CS2
GTIN: 3389110313130
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.54 in (9.0 cm)
Package 1 Width: 5.31 in (13.5 cm)
Package 1 Length: 6.10 in (15.5 cm)
Package 1 Weight: 17.46 oz (495.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 12
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 14.39 lb(US) (6.528 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 96
Package 3 Height: 30.31 in (77.0 cm)
Package 3 Width: 23.62 in (60.0 cm)
Package 3 Length: 31.50 in (80.0 cm)
Package 3 Weight: 139.43 lb(US) (63.244 kg)
Warranty: 18 months
