SDSA1175 | Surge Protect, 36kA, 120/240 VAC, 1 P, 3 W, T4X | Square D by Schneider Electric

Brand: Square DSKU: SDSA1175

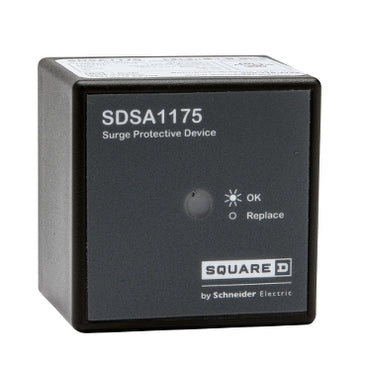

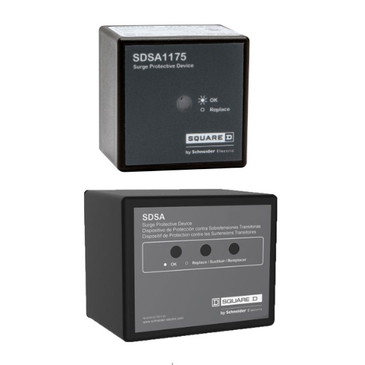

Square D | SDSA1175
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SDSA1175
Jump to: Overview & Specifications Reviews

Overview Details for SDSA1175

Surge Protect, 36kA, 120/240 VAC, 1 P, 3 W, T4X

This surge protection device from Square D is a type 1 device that can be used with or without an over current protection device. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. With a short circuit current rating 25 kA, back nipple mounting, and NEMA 4X rating, this compact design can be placed adjacent to power panels. The unit is set for NEC, CSA, and UL standards.

Specifications

Product
Surge protection device
Range
Surgelogic
Surge Current
36 kA per phase
Voltage Rating
120/240 V AC
Number of Phases
1 phase
Wiring Configuration
3-wire
MCOV
150 V
Nominal Discharge Current
10 kA
SCCR
25 kA
Local Signalling
Status LED green normal operation
Height
2.25 in (57.15 mm)
Width
2.25 in (57.15 mm)
Depth
2.7 in (68.58 mm)
Cable length
24 in (609.60 mm)
Enclosure Rating
NEMA 4X
Enclosure Material
Black Plastic
Standards
UL 1449:ed. 4: type I;NEC 285;CSA C22.2 No 8
Ambient Operating
149 °F (65 °C)
Category
08462-SURGE PROTECTION SDSA
Discount Schedule
DE1B
GTIN
785901210870
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.60 in (6.604 cm)
Package 1 Width
2.70 in (6.858 cm)
Package 1 Length
6.80 in (17.272 cm)
Package 1 Weight
11.20 oz (317.515 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
20
Package 2 Height
7.40 in (18.796 cm)
Package 2 Width
10.80 in (27.432 cm)
Package 2 Length
13.10 in (33.274 cm)
Package 2 Weight
14.46 lb(US) (6.559 kg)
Warranty
18 months
