RXZE2S108M | RELAY SOCKET 300V Pack of 10 | Square D by Schneider Electric

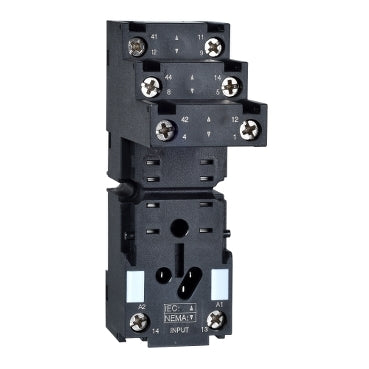

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RXZE2S108M
Documents and manuals
Square D RXZE2S108M Documents
Overview
Details for RXZE2S108M
RELAY SOCKET 300V
Zelio Timer Relays Socket RXZ - separate contact - 12 A, < 250 V, connector, for relay RXM2 "This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0Specifications
- Range of Product
- Harmony Electromechanical Relays;Harmony Timer Relays
- Product or Component Type
- Socket
- contact terminal arrangement
- Separate
- product compatibility
- Plug-in relay RXM 2 C/O;Plug-in relay REXL 2 C/O
- shape of pin
- Flat
- device short name
- RXZ
- sale per indivisible quantity
- 10
- [Ith] conventional free air thermal current
- 12 A
- [Ue] rated operational voltage
- < 250 V
- connections - terminals
- Connector;2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end;Connector;1 x 0.25...1 x 2.5 mm² AWG 22...AWG 17) flexible with cable end;Connector;1 x 0.5...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end;Connector;2 x 0.25...2 x 1 mm² AWG 20...AWG 14) solid without cable end
- tightening torque
- < 1 N.m M3
- fixing mode
- By screw panel);Clip-on 35 mm symmetrical DIN rail)
- Marking
- CE
- Width
- 1.06 in (27 mm)
- Net Weight
- 0.13 lb(US) (0.058 kg)
- [Uimp] rated impulse withstand voltage
- 4 kV
- overvoltage category
- III
- pollution degree
- 3
- Standards
- IEC 61984
- Product Certifications
- CSA;Lloyd's;UL
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- Ambient air temperature for operation
- -40…131 °F (-40…55 °C)
- IP degree of protection
- IP20 conforming to EN/IEC 60529
- dielectric strength
- 2500 V
- Category
- 21128-ZELIO ICE CUBE RELAY ACCESSORIES
- Discount Schedule
- CP2
- GTIN
- 3389119404266
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.08 in (2.746 cm)
- Package 1 Width
- 2.41 in (6.112 cm)
- Package 1 Length
- 3.23 in (8.207 cm)
- Package 1 Weight
- 1.76 oz (50 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 2.60 in (6.6 cm)
- Package 2 Width
- 4.33 in (11 cm)
- Package 2 Length
- 5.47 in (13.9 cm)
- Package 2 Weight
- 20.46 oz (580 g)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 200
- Package 3 Height
- 11.81 in (30 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 24.63 lb(US) (11.173 kg)
- Warranty
- 18 months
