RUZSF3M | RELAY SOCKET Pack of 10 | Square D (OBSOLETE)

Brand: Square DSKU: RUZSF3M

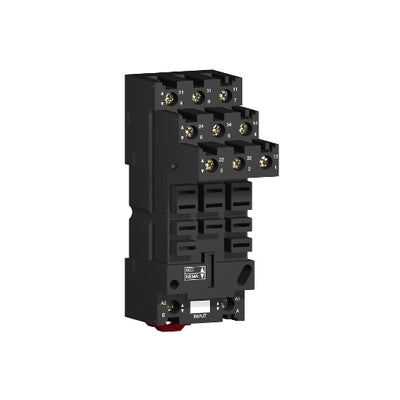

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RUZSF3M

Jump to: Overview & Specifications Reviews

Overview Details for RUZSF3M

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

RELAY SOCKET

"This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

Specifications

Range of product: Harmony Electromechanical Relays
Product or component type: Socket
contact terminal arrangement: Separate
Product compatibility: Plug-in relay RUM with 2 C/O contact
Plug-in relay RUM with 3 C/O contact
Shape of pin: Flat
device short name: RUZ
Sale per indivisible quantity: 10
[Ith] conventional free air thermal current: 16 A
[Ue] rated operational voltage: < 250 V
Tightening torque: < 1 N.m for M3.5 screw(s)
Fixing mode: By screw (panel)
Clip-on (35 mm symmetrical DIN rail)
Marking: CE
Width: 36 mm
Net weight: 0.095 kg
[Uimp] rated impulse withstand voltage: 4 kV
Overvoltage category: III
Pollution degree: 3
Connections - terminals: Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Standards: IEC 61984
product certifications: CSA
UL
Ambient air temperature for storage: -40…85 °C
Ambient air temperature for operation: -40…55 °C
IP degree of protection: IP20 conforming to EN/IEC 60529
Dielectric strength: 2500 V
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.5 cm
Package 1 Width: 9.2 cm
Package 1 Length: 6.3 cm
Package 1 Weight: 103.0 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 10.4 cm
Package 2 Width: 11.2 cm
Package 2 Length: 18.7 cm
Package 2 Weight: 1.05 kg
Unit Type of Package 3: CAR
Number of Units in Package 3: 80
Package 3 Height: 28.5 cm
Package 3 Width: 29.9 cm
Package 3 Length: 39.8 cm
Package 3 Weight: 8.4 kg
Warranty: 18 months
