RUZC3M | Zelio Socket RUZ Relay, Mixed Contact, 10 A, < 250 V Connector for Relay RXM2-RUMC3 Pack of 10 | Square D (OBSOLETE)

Brand: Square DSKU: RUZC3M

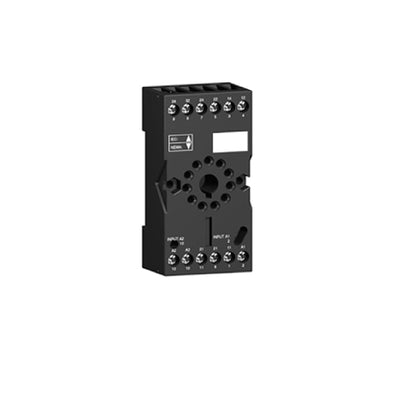

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RUZC3M

Jump to: Overview & Specifications Reviews

Overview Details for RUZC3M

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Zelio Socket RUZ Relay, Mixed Contact, 10 A, < 250 V Connector for Relay RXM2-RUMC3

"This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

Specifications

Range of product: Harmony Electromechanical Relays
Harmony Timer Relays
Product or component type: Socket
contact terminal arrangement: Mixed
Product compatibility: Plug-in relay RUM with 3 C/O contact
Plug-in relay RE48A with 2 C/O contact
Shape of pin: Cylindrical
device short name: RUZ
Sale per indivisible quantity: 10
[Ith] conventional free air thermal current: 10 A
[Ue] rated operational voltage: < 250 V
Tightening torque: < 1 N.m for M3.5 screw(s)
Fixing mode: By screw (panel)
Clip-on (35 mm symmetrical DIN rail)
Marking: CE
Width: 38 mm
Net weight: 0.054 kg
[Uimp] rated impulse withstand voltage: 4 kV
Overvoltage category: III
Pollution degree: 3
Connections - terminals: Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Standards: IEC 61984
product certifications: CSA
UL
Ambient air temperature for storage: -40…85 °C
Ambient air temperature for operation: -40…55 °C
IP degree of protection: IP20 conforming to EN/IEC 60529
Dielectric strength: 2500 V
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.700 cm
Package 1 Width: 3.800 cm
Package 1 Length: 7.800 cm
Package 1 Weight: 56.000 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 8.300 cm
Package 2 Width: 8.400 cm
Package 2 Length: 14.600 cm
Package 2 Weight: 606.000 g
Unit Type of Package 3: S03
Number of Units in Package 3: 200
Package 3 Height: 30.000 cm
Package 3 Width: 30.000 cm
Package 3 Length: 40.000 cm
Package 3 Weight: 12.600 kg
Warranty: 18 months
