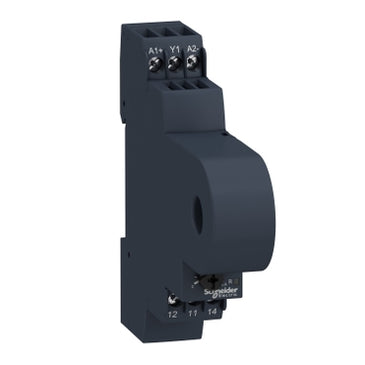

RM17JC00MW | Current control relay RM17-J, range: 2..20 A, 10 mA at 5 V DC, 250 V AC/DC | Square D by Schneider Electric

Brand: Square DSKU: RM17JC00MW

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RM17JC00MW

Jump to: Overview & Specifications Reviews

Overview Details for RM17JC00MW

Current control relay RM17-J, range: 2..20 A, 10 mA at 5 V DC, 250 V AC/DC

Current control relay RM17-J

Switching capacity in VA : 1250 VA
Minimum switching current : 10 mA at 5 V DC
Maximum power consumption in VA : 3 VA
Maximum switching voltage : 250 V AC/DC
Rated supply voltage : 24...240 V AC/DC 50/60 Hz +/- 10 %
Supply voltage limits : 20.4…264 V AC/DC

This Harmony RM17-J control relay allows monitoring of current control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product: Harmony Control Relays
Product or Component Type: Current control relay
Relay Type: Current control relay
relay name: RM17JC
relay monitored parameters: Overcurrent detection
time delay: Without
switching capacity in VA: 1250 VA
minimum switching current: 10 mA 5 V DC
maximum power consumption in VA: 3 VA
measurement range: 2...20 A current
utilisation category: AC-12 IEC 60947-5-1;AC-13 IEC 60947-5-1;AC-14 IEC 60947-5-1;AC-15 IEC 60947-5-1;DC-12 IEC 60947-5-1;DC-13 IEC 60947-5-1;DC-14 IEC 60947-5-1
contacts type and composition: 1 C/O
maximum switching voltage: 250 V AC/DC
[Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz +/- 10 %
supply voltage limits: 20.4…264 V AC/DC
operating voltage tolerance: - 15 % + 10 % Un
maximum power consumption in W: 1 W
control circuit frequency: 40...70 Hz sinusoidal
output contacts: 1 C/O
nominal output current: 5 A
maximum measuring cycle: 30 ms measurement cycle as true rms value
hysteresis: 15 % fixed threshold setting
delay at power up: 0.5 s
measurement accuracy: +/- 10 % of the full scale value
repeat accuracy: +/- 0.5 % input and measurement circuit
measurement error: +/- 0.05 %/°C with temperature variation;< 1 % over the whole range with voltage variation
response time: < 200 ms (in the event of a fault)
polarity: Yes DC
threshold setting: 10...100 %
input current: 100000 mA permanent at 25 °C;300000 mA non repetitive < 3 s at 25 °C
Marking: CE : 73/23/EEC;CE : EMC 89/336/EEC
overvoltage category: III IEC 60664-1
insulation resistance: > 500 MOhm 500 V DC IEC 60255-5;> 500 MOhm 500 V DC IEC 60664-1
[Ui] rated insulation voltage: 400 V IEC 60664-1
insulation: Between supply and measurement
operating position: Any position without derating
connections - terminals: Screw terminals;1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end;Screw terminals;2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Screw terminals;1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end;Screw terminals;2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
tightening torque: 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
housing material: Self-extinguishing plastic
local signalling: for power ON LED (green);for relay ON LED (yellow)
mounting support: 35 mm symmetrical DIN rail conforming to EN/IEC 60715
electrical durability: 100000 cycles
mechanical durability: 30000000 cycles
operating rate: <= 360 operations/hour full load
contacts material: Cadmium free
Width: 0.69 in (17.5 mm)
Net Weight: 0.29 lb(US) (0.13 kg)
immunity to microbreaks: 10 ms
electromagnetic compatibility: Emission standard for industrial environments EN/IEC 61000-6-4;Emission standard for residential;commercial and light-industrial environments EN/IEC 61000-6-3;Immunity for industrial environments NF EN/IEC 61000-6-2
Standards: EN/IEC 60255-6
Product Certifications: GL;C-tick;GOST;UL;CSA
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
ambient air temperature for operation: -4…122 °F (-20…50 °C)
relative humidity: 95 % 131 °F (55 °C) IEC 60068-2-30
vibration resistance: 0.35 mm 5…57.6 Hz)IEC 60068-2-6;1 gn 57.6…150 Hz)IEC 60255-21-1
shock resistance: 15 gn 11 ms IEC 60255-21-1
IP degree of protection: IP20 IEC 60529 terminals);IP30 IEC 60529 casing)
pollution degree: 3 IEC 60664-1
dielectric test voltage: 2 kV AC 50 Hz
non-dissipating shock wave: 4 kV
Category: 22380-RELAYS-MEASUREMENT (RM17-RM35)
Discount Schedule: CP2
GTIN: 3389119405034
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.10 in (2.8 cm)
Package 1 Width: 3.82 in (9.7 cm)
Package 1 Length: 4.09 in (10.4 cm)
Package 1 Weight: 4.34 oz (123 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 32
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 9.80 lb(US) (4.443 kg)
Warranty: 18 months
