QOB320VH | Mini circuit breaker, QO, 20A, 3 pole, 120/240 VAC, 22 kA, bolt on mount | Square D by Schneider Electric

Brand: Square DSKU: QOB320VH

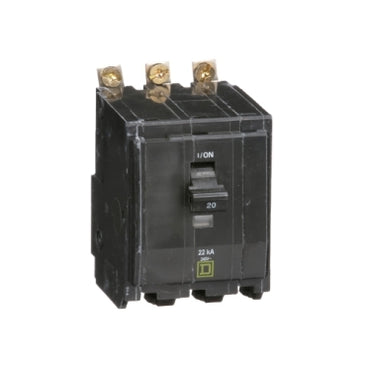

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOB320VH

Overview & Specifications Reviews Parts & Accessories

Overview Details for QOB320VH

Mini circuit breaker, QO, 20A, 3 pole, 120/240 VAC, 22 kA, bolt on mount

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 20 A
Voltage Rating: 120/240 V AC;240 V AC;120 V AC
Mounting Type: Bolt-on
Number of Poles: 3P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Pressure plate
Interrupt Rating: 22 kA 120/240 V AC 50/60 Hz;22 kA 240 V AC 50/60 Hz;22 kA 120 V AC 50/60 Hz
Number of Panel Spaces: 3
Wire Size: AWG 14...AWG 8 copper or aluminium
Tightening Torque: 40.71 lbf.in (4.6 N.m)
Height: 2.99 in (76 mm)
Width: 2.24 in (57 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.80 lb(US) (0.363 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00015-QOB CIRCUIT BREAKERS
Discount Schedule: DE2
GTIN: 785901371960
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.30 in (5.842 cm)
Package 1 Width: 3.00 in (7.62 cm)
Package 1 Length: 3.50 in (8.89 cm)
Package 1 Weight: 12.80 oz (362.874 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 3
Package 2 Height: 3.30 in (8.382 cm)
Package 2 Width: 2.80 in (7.112 cm)
Package 2 Length: 6.80 in (17.272 cm)
Package 2 Weight: 2.48 lb(US) (1.125 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 36
Package 3 Height: 3.20 in (8.128 cm)
Package 3 Width: 14.40 in (36.576 cm)
Package 3 Length: 21.50 in (54.61 cm)
Package 3 Weight: 30.85 lb(US) (13.993 kg)
Warranty: 18 months
