QOB3150VH | MINIATURE CIRCUIT BREAKER 240V 150A | Square D by Schneider Electric

Brand: Square DSKU: QOB3150VH

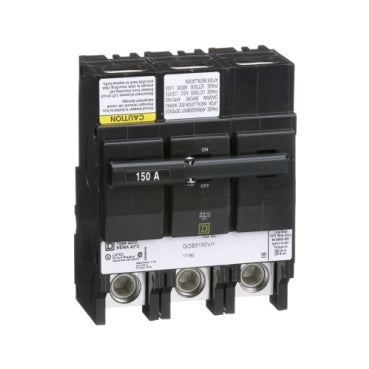

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOB3150VH

Jump to: Overview & Specifications Reviews

Overview Details for QOB3150VH

MINIATURE CIRCUIT BREAKER 240V 150A

Miniature circuit breaker, QO, 150A, 3 pole, 120/240 VAC, 22 kA, bolt on mount QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 150A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 150 A
Voltage Rating: 120/240 V AC;240 V AC;120 V AC
Mounting Type: Bolt-on
Number of Poles: 3P
Circuit Breaker Type: Standard
Ratings: Not rated
Electrical Connection: Box lugs
Interrupt Rating: 22 kA 120/240 V AC 50/60 Hz;22 kA 240 V AC 50/60 Hz;22 kA 120 V AC 50/60 Hz
Number of Panel Spaces: 6
Wire Size: AWG 4...300 kcmil copper or aluminium
Tightening Torque: 40.71 lbf.in (4.6 N.m)
Height: 5.71 in (145 mm)
Width: 4.49 in (114 mm)
Depth: 4.88 in (124 mm)
Net Weight: 0.55 lb(US) (0.249 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00015-QOB CIRCUIT BREAKERS
Discount Schedule: DE2
GTIN: 785901065517
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.30 in (10.922 cm)
Package 1 Width: 5.00 in (12.7 cm)
Package 1 Length: 6.70 in (17.018 cm)
Package 1 Weight: 3.94 lb(US) (1.787 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 558
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 2199.00 lb(US) (997.449 kg)
Warranty: 18 months
