QOB120GFI | MINIATURE CIRCUIT BREAKER 120V 20A | Square D by Schneider Electric

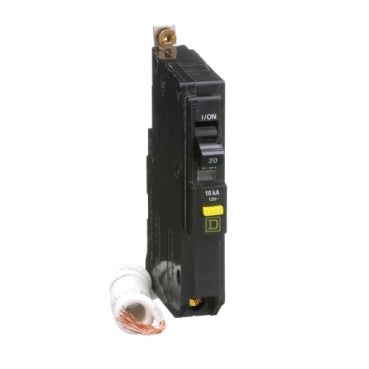

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QOB120GFI
Documents and manuals
Square D QOB120GFI Documents
Overview
Details for QOB120GFI
MINIATURE CIRCUIT BREAKER 120V 20A
Mini circuit breaker, QO, 20A, 1 pole, 120 VAC, 10 kA, 6mA grd fault A, pigtail, bolt on mount QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 20 A
- Voltage Rating
- 120 V AC
- Mounting Type
- Bolt-on
- Number of Poles
- 1P
- Circuit Breaker Type
- Ground fault protecting class A 6 mA
- Ratings
- Not rated
- Electrical Connection
- Pressure plate
- Interrupt Rating
- 10 kA 120 V AC 50/60 Hz
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper or aluminium
- Tightening Torque
- 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
- Height
- 4.13 in (105 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.56 lb(US) (0.254 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00015-QOB CIRCUIT BREAKERS
- Discount Schedule
- DE2
- GTIN
- 785901368717
- Returnability
- Yes
- Country of origin
- MX
- Warranty
- 18 months
