QO330L200G | LOAD CENTER QO MLO 240V 200A 3PH 30SP | Square D by Schneider Electric

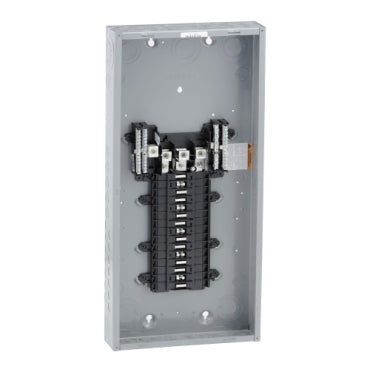

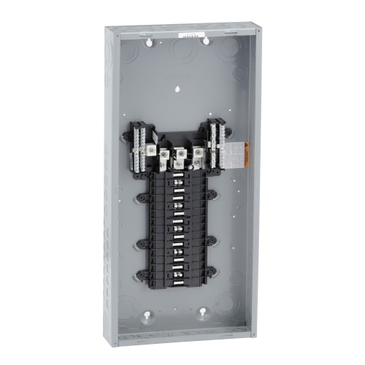

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO330L200G
Documents and manuals
Square D QO330L200G Documents
Overview
Details for QO330L200G
LOAD CENTER QO MLO 240V 200A 3PH 30SP
Load center, QO, 3 phase, 30 spaces, 30 circuits, 200A fixed main lugs, NEMA1, grnd bar, UL QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides 200A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Cover Type
- Order separately
- Tightening Torque
- Main lugs 250 lb.in;AWG 4...250 kcmil;aluminium/copper;Cover 20 lb.in
- Load Center Type
- Main lugs
- Rated Current
- 200 A
- Number of Spaces
- 30
- Max Short Circuit Current Rating
- 65 kA
- Maximum Number of Single Pole Circuits
- 30
- Maximum Number of Tandem Breakers
- 0
- Number of Phases
- 3 phase
- Voltage Rating
- 208Y/120 V AC;240/120 V delta AC;240 V delta AC
- Wire Size
- AWG 6...250 kcmil aluminium/copper
- Ground Bar
- Grounding bar included (not installed)
- Electrical Connection
- Lugs
- Wiring Configuration
- 3-wire;4-wire
- Busbar Material
- Tin plated copper busbar
- Enclosure Material
- Welded sheet steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 9
- Height
- 29.84 in (758 mm)
- Width
- 14.25 in (362 mm)
- Enclosure Rating
- NEMA 1 indoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL Listed
- Category
- 00011-QO 3PH LOAD CENTER;INDOOR
- Discount Schedule
- DE3
- GTIN
- 785901295501
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 31.00 in (78.74 cm)
- Package 1 Width
- 4.20 in (10.668 cm)
- Package 1 Length
- 14.60 in (37.084 cm)
- Package 1 Weight
- 17.45 lb(US) (7.915 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 27
- Package 2 Height
- 42.00 in (106.68 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 477.00 lb(US) (216.363 kg)
- Warranty
- 18 months
