QO312L125GRB | LOAD CENTER QO MLO 240V 125A 3P 12SP | Square D by Schneider Electric

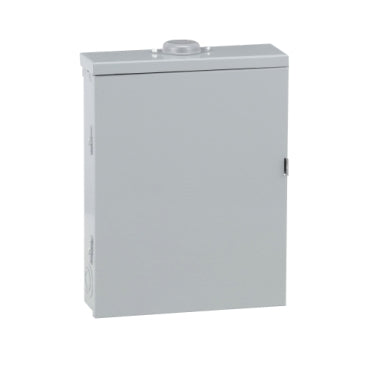

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO312L125GRB
Documents and manuals
Square D QO312L125GRB Documents
Overview
Details for QO312L125GRB
LOAD CENTER QO MLO 240V 125A 3P 12SP
Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA3R, grnd bar, UL- Marketing Trade Name : QO
- Product : Load Center
- Enclosure type : Weatherproof enclosure
- Cover type : Surface cover
- Tightening torque : Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
- Load Center Type : Main lugs
- Line Rated Current : 125 A
- Number of spaces : 12
- Max Short Circuit Current Rating : 65 kA
- Maximum Number of Single Pole Circuits : 12
- Maximum Number of Tandem Breakers : 0
- Number of Phases : 3 phase
- Voltage Rating : 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
- Wire Size : AWG 6...AWG 2/0 aluminium/copper
- Electrical Connection : Lugs
- Grounding Bar : Grounding bar included (not installed)
- Electrical connection : Lugs
- Wiring configuration : 4-wire, 3-wire
- Busbar Material : Tin plated copper busbar
- Enclosure Material : Welded galvannealed steel
- Cover Finish : Baked enamel Gray
- Box number : 3R
- Height : 18.94 in (481 mm)
- Maximum Width : 14.76 in (375 mm)
- Enclosure Rating : NEMA 3R outdoor
Specifications
- Marketing Trade Name
- QO
- Product Type
- Load Center
- Enclosure Type
- Weatherproof enclosure
- Cover Type
- Surface cover
- Tightening Torque
- Main lugs 50 lb.in;AWG 6...AWG 2/0;aluminium/copper
- Load Center Type
- Main lugs
- Rated Current
- 125 A
- Number of Spaces
- 12
- Max Short Circuit Current Rating
- 65 kA
- Maximum Number of Single Pole Circuits
- 12
- Maximum Number of Tandem Breakers
- 0
- Number of Phases
- 3 phase
- Voltage Rating
- 208Y/120 V AC;240/120 V delta AC;240 V delta AC
- Wire Size
- AWG 6...AWG 2/0 aluminium/copper
- Ground Bar
- Grounding bar included (not installed)
- Electrical Connection
- Lugs
- Wiring Configuration
- 4-wire;3-wire
- Busbar Material
- Tin plated copper busbar
- Enclosure Material
- Welded galvannealed steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 3R
- Height
- 18.94 in (481 mm)
- Width
- 14.76 in (375 mm)
- Enclosure Rating
- NEMA 3R outdoor
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL Listed
- Category
- 00017-QO 3PH LOAD CENTER;OUTDOOR
- Discount Schedule
- DE3
- GTIN
- 785901295044
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20.60 in (52.324 cm)
- Package 1 Width
- 4.90 in (12.446 cm)
- Package 1 Length
- 15.70 in (39.878 cm)
- Package 1 Weight
- 21.52 lb(US) (9.761 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 39
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 840.00 lb(US) (381.017 kg)
- Warranty
- 18 months
