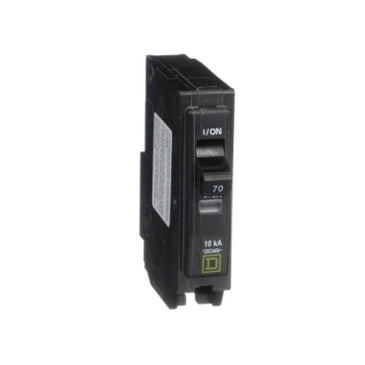

Mini circuit breaker, QO, 70A, 1 pole, 120/240 VAC, 10 kA, plug in mount

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 70 A
Voltage Rating: 120/240 V AC;120 V AC;48 V DC
Mounting Type: Plug-in
Number of Poles: 1P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Box lugs
Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz;5 kA 48 V DC
Number of Panel Spaces: 1
Wire Size: AWG 8...AWG 2 copper or aluminium
Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height: 3.11 in (79 mm)
Width: 0.75 in (19 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.31 lb(US) (0.141 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00104-QO 35-70A 1P;70-125A 2P CB
Discount Schedule: DE2A
GTIN: 785901477471
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.00 in (2.54 cm)
Package 1 Width: 3.60 in (9.144 cm)
Package 1 Length: 3.60 in (9.144 cm)
Package 1 Weight: 0.31 lb(US) (0.141 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 4032
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 1263.14 lb(US) (572.948 kg)
Warranty: 18 months
