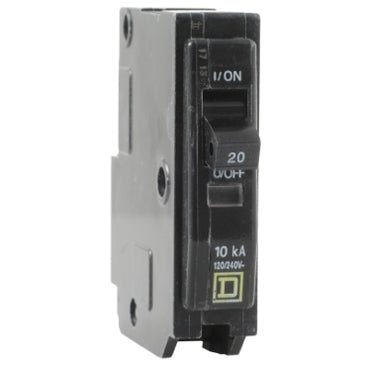

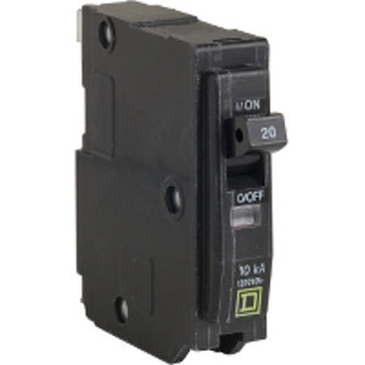

MINIATURE CIRCUIT BREAKER 120/240V 20A
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 20 A
- Voltage Rating
- 120/240 V AC;120 V AC;48 V DC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Circuit Breaker Type
- Standard
- Ratings
- HACR and Switching Duty rated
- Electrical Connection
- Pressure plate
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz;5 kA 48 V DC
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper or aluminium
- Tightening Torque
- 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
- Height
- 2.99 in (76 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.25 lb(US) (0.113 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00004-QO;QOT 10-30A 1P;10-60A 2P
- Discount Schedule
- DE2A
- GTIN
- 785901400103
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.30 in (8.382 cm)
- Package 1 Width
- 0.80 in (2.032 cm)
- Package 1 Length
- 3.00 in (7.62 cm)
- Package 1 Weight
- 4.32 oz (122.47 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 3.10 in (7.874 cm)
- Package 2 Width
- 3.00 in (7.62 cm)
- Package 2 Length
- 7.70 in (19.558 cm)
- Package 2 Weight
- 2.83 lb(US) (1.284 kg)
- Unit Type of Package 3
- CAR
- Number of Units in Package 3
- 100
- Package 3 Height
- 8.50 in (21.59 cm)
- Package 3 Width
- 7.20 in (18.288 cm)
- Package 3 Length
- 17.40 in (44.196 cm)
- Package 3 Weight
- 28.60 lb(US) (12.973 kg)
- Warranty
- 18 months
