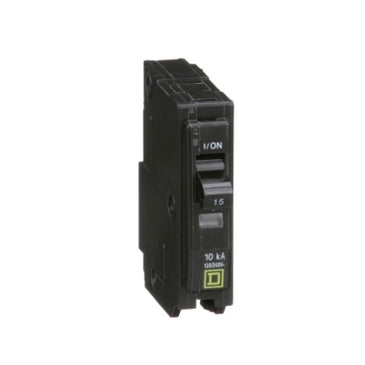

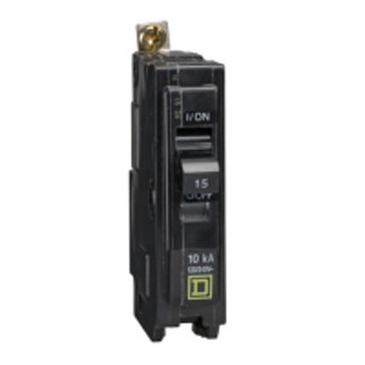

QO Miniature Circuit Breaker, 15A, 1-Pole, 120V, 10kA, Plug-in Mount

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 15 A
Voltage Rating: 120/240 V AC;120 V AC;48 V DC
Mounting Type: Plug-in
Number of Poles: 1P
Circuit Breaker Type: Standard
Ratings: HACR and Switching Duty rated
Electrical Connection: Pressure plate
Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz;5 kA 48 V DC
Number of Panel Spaces: 1
Wire Size: AWG 14...AWG 8 copper or aluminium
Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height: 2.99 in (76 mm)
Width: 0.75 in (19 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.30 lb(US) (0.136 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00004-QO;QOT 10-30A 1P;10-60A 2P
Discount Schedule: DE2A
GTIN: 785901400066
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.00 in (7.62 cm)
Package 1 Width: 0.70 in (1.778 cm)
Package 1 Length: 3.30 in (8.382 cm)
Package 1 Weight: 4.80 oz (136.078 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 3.30 in (8.382 cm)
Package 2 Width: 0.70 in (1.778 cm)
Package 2 Length: 7.70 in (19.558 cm)
Package 2 Weight: 2.74 lb(US) (1.243 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 100
Package 3 Height: 8.20 in (20.828 cm)
Package 3 Width: 6.70 in (17.018 cm)
Package 3 Length: 17.40 in (44.196 cm)
Package 3 Weight: 28.60 lb(US) (12.973 kg)
Warranty: 18 months
