PK15GTA | LOAD CENTER EQUIPMENT GROUND BAR ASSY | Square D by Schneider Electric

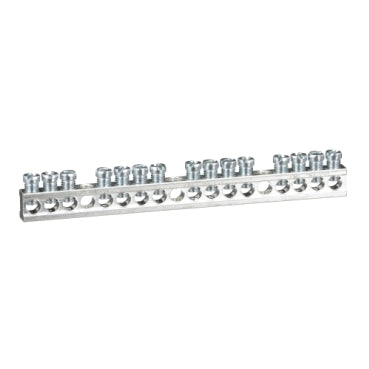

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PK15GTA

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D PK15GTA Documents

Datasheet

Overview

Details for PK15GTA

LOAD CENTER EQUIPMENT GROUND BAR ASSY

QO® Circuit Breaker Load Centers, PK15GTA, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Specifications

product line: QO
product type: Bar
number of connectors: 15
wire size: AWG 14...AWG 4 copper;AWG 12...AWG 4 aluminium
provided equipment: 2 screw
bar length: 5.63 in (143 mm)
maximum length of segment: 3.15 in (80 mm)
device mounting: Direct mounting back of enclosure
Height: 0.437 in (11.10 mm);0.437 in (11.10 mm)
Depth: 0.312 in (7.92 mm);0.312 in (7.92 mm)
tightening torque: 30 lb.in;Mounting screw 30 lb.in;20 lb.in;AWG 14...AWG 10;copper;20 lb.in;AWG 12...AWG 10;aluminium;25 lb.in;AWG 8;35 lb.in;AWG 6...AWG 4;25 lb.in;AWG 14...AWG 12;copper;25 lb.in;AWG 12...AWG 10;aluminium
Category: 00102-QO LC ACCESSORIES
Discount Schedule: DE3A
GTIN: 785901026419
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.40 in (1.016 cm)
Package 1 Width: 1.70 in (4.318 cm)
Package 1 Length: 5.80 in (14.732 cm)
Package 1 Weight: 2.40 oz (68.039 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 10
Package 2 Height: 3.70 in (9.398 cm)
Package 2 Width: 6.30 in (16.002 cm)
Package 2 Length: 6.90 in (17.526 cm)
Package 2 Weight: 28.00 oz (793.786 g)
Unit Type of Package 3: PAL
Number of Units in Package 3: 2160
Package 3 Height: 28.00 in (71.12 cm)
Package 3 Width: 40.00 in (101.6 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 411.00 lb(US) (186.426 kg)
Warranty: 18 months
