NSYTRV62PE | 8MM GROUNDING GREEN/YELLOW | Square D (OBSOLETE)

Brand: Square DSKU: NSYTRV62PE

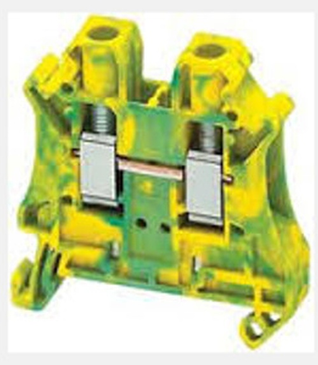

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYTRV62PE

Jump to: Overview & Specifications Reviews

Overview Details for NSYTRV62PE

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

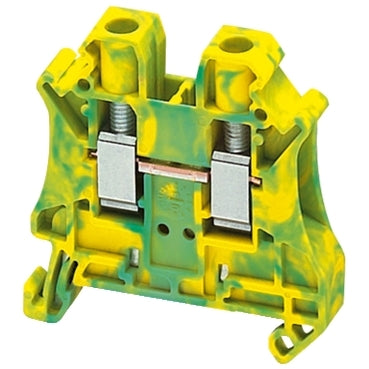

8MM GROUNDING GREEN/YELLOW

Protective Earth Terminal Block

Nominal c.s.a. 6 mm
1 pole - 1x1
Green and Yellow
Dimensions (mm): 47.7 L x 47.5 H x 8.2 W

Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 6 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Specifications

range: Linergy
product name: Linergy TR
Product or Component Type: Terminal block
device short name: TRV
terminal block type: Protective earth
terminal block level: 1
Mounting Mode: Clip-on
nominal cross section: 0.01 in² (6 mm²)
Length: 1.88 in (47.7 mm)
color: Green-yellow
Quantity per Set: Set of 50
Width: 0.32 in (8.2 mm)
Height: 1.87 in (47.5 mm)
connections - terminals: 1 x screw terminal upstream;1 x screw terminal downstream
number of connections: 2
connection position: Sideways
number of measurement input: 2
cable cross section: 0.00…0.02 in² (0.2…10 mm²);solid;0.00…0.02 in² (0.2…10 mm²);flexible without cable end;0.00…0.01 in² (0.2…6 mm²);flexible with cable end
tightening torque: 13.28…15.93 lbf.in (1.5…1.8 N.m)
wire stripping length: 0.39 in (10 mm)
tool type: Connection screwdriver;Disconnection screwdriver
Material: Polyamide 6/6 insulating case
dielectric loss: 0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
dielectric constant: 3.7 at 1 MHz
resistivity: 10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
surface resistance: 1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
creep resistance: 500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
flame retardance: V0 0.03 in (0.8 mm) UL 94
Net Weight: 0.80 oz (22.74 g)
range compatibility: Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys
Product Compatibility: Spacial enclosures
Product Certifications: ATEX;cURus;VDE;EAC;IEC-Ex;DNV;CSA;LR;GL
dielectric strength: 1000 V IEC 60243-1
ambient air temperature for operation: -40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
Category: 21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
Discount Schedule: CP5
GTIN: 3606480532085
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.35 in (0.9 cm)
Package 1 Width: 1.89 in (4.8 cm)
Package 1 Length: 1.85 in (4.7 cm)
Package 1 Weight: 0.78 oz (22 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 50
Package 2 Height: 2.05 in (5.2 cm)
Package 2 Width: 4.02 in (10.2 cm)
Package 2 Length: 8.43 in (21.4 cm)
Package 2 Weight: 2.44 lb(US) (1.108 kg)
Unit Type of Package 3: S03
Number of Units in Package 3: 450
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 23.06 lb(US) (10.46 kg)
Warranty: 18 months
