NSYTRV62BL | 8MM BLUE TERMINAL BLOCK 600V | Square D (OBSOLETE)

Brand: Square DSKU: NSYTRV62BL

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYTRV62BL

Jump to: Overview & Specifications Reviews

Overview Details for NSYTRV62BL

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

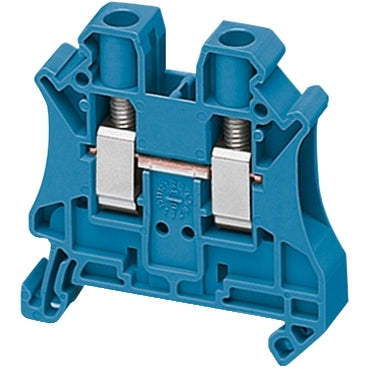

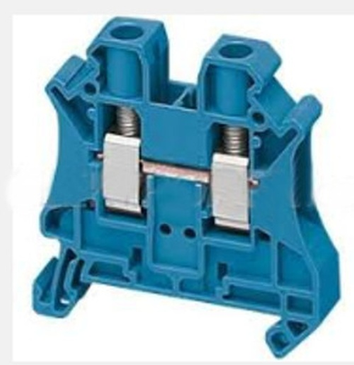

8MM BLUE TERMINAL BLOCK 600V

Passthrough Terminal Block

Nominal c.s.a. 6 mm
1 pole - 1x1
Blue
Max. Electric Values: 1000 V, 57 A
Dimensions (mm): 47.7 L x 47.5 H x 8.2 W

Specifications

range: Linergy
product name: Linergy TR
Product or Component Type: Terminal block
device short name: TRV
accessory / separate part category: Connection accessory
terminal block type: Passthrough
terminal block level: 1
Mounting Mode: Clip-on
nominal cross section: 0.01 in² (6 mm²)
Length: 1.88 in (47.7 mm)
color: Blue
Quantity per Set: Set of 50
Width: 0.32 in (8.2 mm)
Height: 1.87 in (47.5 mm)
connections - terminals: 1 x screw terminal upstream M4);1 x screw terminal downstream M4)
number of connections: 2
connection position: Sideways
number of measurement input: 2
cable cross section: 0.00…0.02 in² (0.2…10 mm²);solid with cable end;0.00…0.01 in² (0.2…6 mm²);flexible with cable end;0.00…0.02 in² (0.2…10 mm²);solid without cable end;0.00…0.02 in² (0.2…10 mm²);flexible without cable end
tightening torque: 13.28…15.93 lbf.in (1.5…1.8 N.m)
wire stripping length: 0.39 in (10 mm)
tool type: Connection screwdriver;Disconnection screwdriver
[Ue] rated operational voltage: 1000 V EN/IEC 60947-7-1;600 V CSA;690 V ATEX Exe II Ex II 2 GD;600 V cURus
Line Rated Current: 41 A EN/IEC 60947-7-1;50 A cURus;50 A CSA;40 A ATEX Exe II Ex II 2 GD
Material: Polyamide 6/6 insulating case;Copper alloy connector and screw;Copper alloy commoning link;Chromium-nickel steel spring
dielectric loss: 0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
dielectric constant: 3.7 at 1 MHz
resistivity: 10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
surface resistance: 1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
creep resistance: 500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
flame retardance: V0 0.03 in (0.8 mm) UL 94
Net Weight: 0.49 oz (13.95 g)
range compatibility: Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys
Product Compatibility: Spacial enclosures
Product Certifications: VDE;EAC;GL;IEC-Ex;LR;DNV;CSA;ATEX;cURus
dielectric strength: 1000 V IEC 60243-1
ambient air temperature for operation: -40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
Category: 21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
Discount Schedule: CP5
GTIN: 3606480532078
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 3.94 in (10.0 cm)
Package 1 Length: 10.24 in (26.0 cm)
Package 1 Weight: 0.46 oz (13.0 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 50
Package 2 Height: 2.17 in (5.5 cm)
Package 2 Width: 3.94 in (10.0 cm)
Package 2 Length: 10.24 in (26.0 cm)
Package 2 Weight: 25.33 oz (718.0 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 750
Package 3 Height: 11.81 in (30.0 cm)
Package 3 Width: 11.81 in (30.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 24.86 lb(US) (11.277 kg)
Warranty: 18 months
