NSYTRV44PE | Double Deck Protective Earth Terminal Block, Nominal c.s.a. 4 mm, 1 pole - 2x2, Green and Yellow | Square D by Schneider Electric

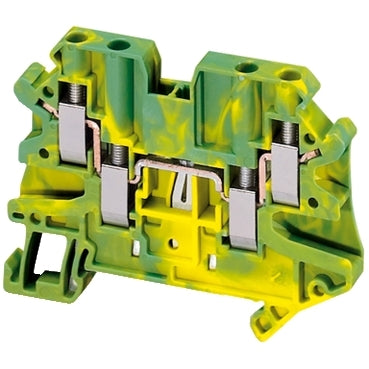

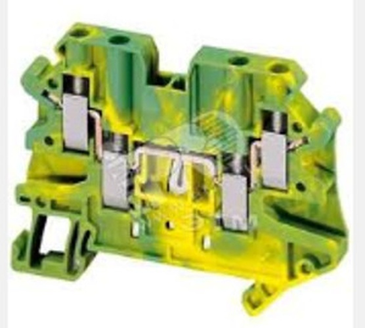

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYTRV44PE
Documents and manuals
Square D NSYTRV44PE Documents
Overview
Details for NSYTRV44PE
Double Deck Protective Earth Terminal Block, Nominal c.s.a. 4 mm, 1 pole - 2x2, Green and Yellow
Specifications
- range
- Linergy
- product name
- Linergy TR
- Product or Component Type
- Terminal block
- device short name
- TRV
- terminal block type
- Protective earth
- terminal block level
- 1
- Mounting Mode
- Clip-on
- nominal cross section
- 0.01 in² (4 mm²)
- Length
- 2.57 in (65.4 mm)
- color
- Green-yellow
- Quantity per Set
- Set of 50
- Width
- 0.24 in (6.2 mm)
- Height
- 1.87 in (47.5 mm)
- connections - terminals
- 2 x screw terminal downstream;2 x screw terminal upstream
- number of connections
- 4
- connection position
- Sideways
- number of measurement input
- 2
- cable cross section
- 0.00…0.01 in² (0.14…6 mm²);solid;0.00…0.01 in² (0.2…4 mm²);flexible with cable end;0.00…0.01 in² (0.14…6 mm²);flexible without cable end
- tightening torque
- 5.31…7.08 lbf.in (0.6…0.8 N.m)
- wire stripping length
- 0.35 in (9 mm)
- tool type
- Connection screwdriver;Disconnection screwdriver
- Material
- Polyamide 6/6 insulating case
- dielectric loss
- 0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
- dielectric constant
- 3.7 at 1 MHz
- resistivity
- 10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
- surface resistance
- 1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
- creep resistance
- 500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
- flame retardance
- V0 0.03 in (0.8 mm) UL 94
- Net Weight
- 0.76 oz (21.5 g)
- range compatibility
- Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys
- Product Compatibility
- Spacial enclosures
- Product Certifications
- DNV;GL;ATEX;cURus;CSA;LR;EAC;IEC-Ex
- dielectric strength
- 1000 V IEC 60243-1
- ambient air temperature for operation
- -40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
- Category
- 21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
- Discount Schedule
- CP5
- GTIN
- 3606480532023
- Returnability
- No
- Country of origin
- DE
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.97 in (5 cm)
- Package 1 Width
- 3.94 in (10 cm)
- Package 1 Length
- 10.24 in (26 cm)
- Package 1 Weight
- 0.74 oz (21 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 50
- Package 2 Height
- 1.97 in (5 cm)
- Package 2 Width
- 3.94 in (10 cm)
- Package 2 Length
- 10.24 in (26 cm)
- Package 2 Weight
- 2.37 lb(US) (1.074 kg)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 400
- Package 3 Height
- 11.81 in (30 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 20.04 lb(US) (9.089 kg)
- Warranty
- 18 months
