NSYTRV43 | 6MM TERMINAL BLOCK - 1-1X2 | Square D (OBSOLETE)

Brand: Square DSKU: NSYTRV43

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYTRV43

Jump to: Overview & Specifications Reviews

Overview Details for NSYTRV43

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

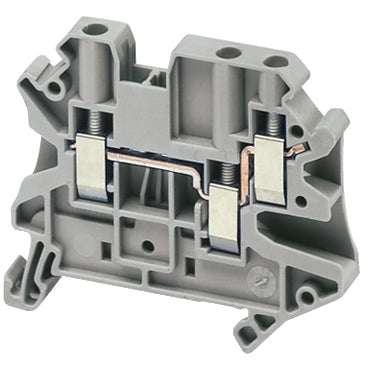

6MM TERMINAL BLOCK - 1-1X2

Double Deck Passthrough Terminal Block

Nominal c.s.a. 4 mm
1 pole - 1x2
Grey
Max. Electric Values: 500 V, 41 A
Dimensions (mm): 57.8 Lx 47.5 H x 6.2 W

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This grey grounding terminal block has 3 terminal points. This terminal block has screw termination. The terminals will accept wires from 26 AWG to 10AWG. With the help of a screw driver the block will mount on 35mm DIN rail. Each block is 1.87 inches tall, 0.24 inches wide and 2.28 inches deep. Each wieghs 0.49 oz. The blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.

Specifications

range: Linergy
product name: Linergy TR
Product or Component Type: Terminal block
device short name: TRV
accessory / separate part category: Connection accessory
terminal block type: Passthrough
terminal block level: 1
Mounting Mode: Clip-on
nominal cross section: 0.01 in² (4 mm²)
Length: 2.28 in (57.8 mm)
color: Gray
Quantity per Set: Set of 50
Width: 0.24 in (6.2 mm)
Height: 1.87 in (47.5 mm)
connections - terminals: 1 x screw terminal upstream M3);2 x screw terminal downstream M3)
number of connections: 3
connection position: Sideways
number of measurement input: 2
cable cross section: 0.00…0.01 in² (0.14…6 mm²);solid with cable end;0.00…0.01 in² (0.2…4 mm²);flexible with cable end;0.00…0.01 in² (0.14…6 mm²);flexible without cable end;0.00…0.01 in² (0.14…6 mm²);solid without cable end
tightening torque: 5.31…7.08 lbf.in (0.6…0.8 N.m)
wire stripping length: 0.35 in (9 mm)
tool type: Connection screwdriver;Disconnection screwdriver
[Ue] rated operational voltage: 500 V EN/IEC 60947-7-1;352 V ATEX Exe II Ex II 2 GD;150 V cURus
Line Rated Current: 32 A EN/IEC 60947-7-1;30 A cURus;29 A ATEX Exe II Ex II 2 GD
Material: Polyamide 6/6 insulating case;Copper alloy connector and screw;Copper alloy commoning link;Chromium-nickel steel spring
dielectric loss: 0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
dielectric constant: 3.7 at 1 MHz
resistivity: 10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
surface resistance: 1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
creep resistance: 500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
flame retardance: V0 0.03 in (0.8 mm) UL 94
Net Weight: 0.49 oz (14 g)
range compatibility: Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys
Product Compatibility: Spacial enclosures
Product Certifications: EAC;CSA;cURus;IEC-Ex;LR;GL;ATEX;DNV
dielectric strength: 1000 V IEC 60243-1
ambient air temperature for operation: -40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
Category: 21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
Discount Schedule: CP5
GTIN: 3606480531972
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.09 in (5.3 cm)
Package 1 Width: 2.40 in (6.1 cm)
Package 1 Length: 12.52 in (31.8 cm)
Package 1 Weight: 0.46 oz (13.0 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 50
Package 2 Height: 2.09 in (5.3 cm)
Package 2 Width: 2.40 in (6.1 cm)
Package 2 Length: 12.52 in (31.8 cm)
Package 2 Weight: 24.20 oz (686.0 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 500
Package 3 Height: 11.81 in (30.0 cm)
Package 3 Width: 11.81 in (30.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 16.21 lb(US) (7.353 kg)
Warranty: 18 months
