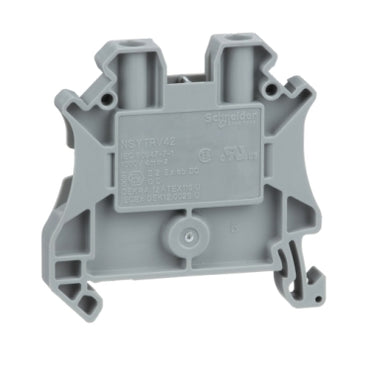

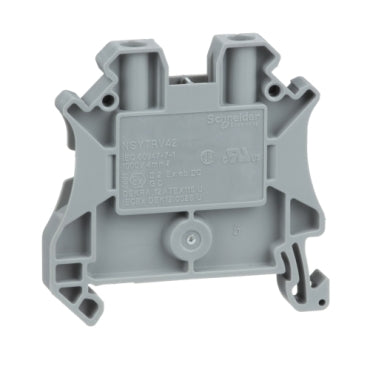

NSYTRV42 | SCREW TERMINAL | Square D (OBSOLETE)

Brand: Square DSKU: NSYTRV42
Square D | NSYTRV42
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYTRV42
Jump to: Overview & Specifications Reviews

Overview Details for NSYTRV42

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

SCREW TERMINAL

Passthrough Terminal Block
  • Nominal c.s.a. 4 mm
  • 1 pole - 1x1
  • Grey
  • Max. Electric Values: 1000V, 41A
  • Dimensions (mm): 47.7 L x 47.5 H x 6.2 W
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Specifications

range
Linergy
product name
Linergy TR
Product or Component Type
Terminal block
device short name
TRV
accessory / separate part category
Connection accessory
terminal block type
Passthrough
terminal block level
1
Mounting Mode
Clip-on
nominal cross section
0.01 in² (4 mm²)
Length
1.88 in (47.7 mm)
color
Gray
Quantity per Set
Set of 50
Width
0.24 in (6.2 mm)
Height
1.87 in (47.5 mm)
connections - terminals
1 x screw terminal upstream M3);1 x screw terminal downstream M3)
number of connections
2
connection position
Sideways
number of measurement input
2
cable cross section
0.00…0.01 in² (0.14…6 mm²);solid with cable end;0.00…0.01 in² (0.2…4 mm²);flexible with cable end;0.00…0.01 in² (0.2…6 mm²);solid without cable end;0.00…0.01 in² (0.2…6 mm²);flexible without cable end
tightening torque
5.31…7.08 lbf.in (0.6…0.8 N.m)
wire stripping length
0.35 in (9 mm)
tool type
Connection screwdriver;Disconnection screwdriver
[Ue] rated operational voltage
1000 V EN/IEC 60947-7-1;600 V CSA;690 V ATEX Exe II Ex II 2 GD;600 V cURus
Line Rated Current
32 A EN/IEC 60947-7-1;30 A CSA;30 A ATEX Exe II Ex II 2 GD;30 A cURus
Material
Polyamide 6/6 insulating case;Copper alloy connector and screw;Copper alloy commoning link;Chromium-nickel steel spring
dielectric loss
0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
dielectric constant
3.7 at 1 MHz
resistivity
10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
surface resistance
1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
creep resistance
500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
flame retardance
V0 0.03 in (0.8 mm) UL 94
Net Weight
0.33 oz (9.4 g)
range compatibility
Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys
Product Compatibility
Spacial enclosures
Product Certifications
cURus;VDE;IEC-Ex;ATEX;GL;EAC;LR;CSA;DNV
dielectric strength
1000 V IEC 60243-1
ambient air temperature for operation
-40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
Category
21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
Discount Schedule
CP5
GTIN
3606480531897
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.26 in (0.65 cm)
Package 1 Width
1.85 in (4.7 cm)
Package 1 Length
1.89 in (4.8 cm)
Package 1 Weight
0.32 oz (9.0 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
