NSYTRV22BL | 5MM BLUE TERMINAL BLOCK 600V | Square D (OBSOLETE)

Brand: Square DSKU: NSYTRV22BL

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYTRV22BL

Jump to: Overview & Specifications Reviews

Overview Details for NSYTRV22BL

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

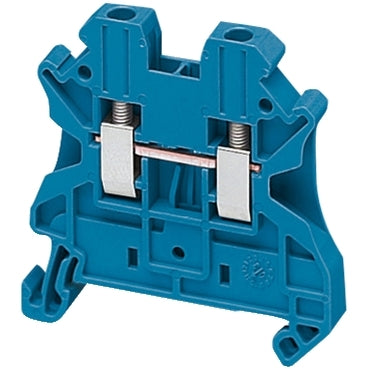

5MM BLUE TERMINAL BLOCK 600V

Passthrough Terminal Block

Nominal c.s.a. 2.5 mm
1 pole - 1x1
Blue
Max. Electric Values: 1000 V, 32 A
Dimensions (mm): 47.7 L x 47.5 H x 5.2 W

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Specifications

range: Linergy
product name: Linergy TR
Product or Component Type: Terminal block
device short name: TRV
accessory / separate part category: Connection accessory
terminal block type: Passthrough
terminal block level: 1
Mounting Mode: Clip-on
nominal cross section: 0.00 in² (2.5 mm²)
Length: 1.88 in (47.7 mm)
color: Blue
Quantity per Set: Set of 50
Width: 0.20 in (5.2 mm)
Height: 1.87 in (47.5 mm)
connections - terminals: 1 x screw terminal upstream M3);1 x screw terminal downstream M3)
number of connections: 2
connection position: Sideways
number of measurement input: 2
cable cross section: 0.00…0.01 in² (0.14…4 mm²);solid with cable end;0.00…0.00 in² (0.2…2.5 mm²);flexible with cable end;0.00…0.01 in² (0.14…4 mm²);solid without cable end;0.00…0.01 in² (0.14…4 mm²);flexible without cable end
tightening torque: 4.43…5.31 lbf.in (0.5…0.6 N.m)
wire stripping length: 0.35 in (9 mm)
tool type: Connection screwdriver;Disconnection screwdriver
[Ue] rated operational voltage: 1000 V EN/IEC 60947-7-1;600 V CSA;690 V ATEX Exe II Ex II 2 GD;600 V cURus
Line Rated Current: 24 A EN/IEC 60947-7-1;22 A ATEX Exe II Ex II 2 GD;20 A cURus;20 A CSA
Material: Polyamide 6/6 insulating case;Copper alloy connector and screw;Copper alloy commoning link;Chromium-nickel steel spring
dielectric loss: 0.01 at 1 MHz IEC 60250;0.01 at 1 MHz VDE 0303-T4
dielectric constant: 3.7 at 1 MHz
resistivity: 10000 MΩ.m IEC 60093;10000 MΩ.m VDE 0303-T30
surface resistance: 1000 GΩ IEC 60093;1000 GΩ VDE 0303-T30
creep resistance: 500 CTI (> 400 kB) IEC 60093;500 CTI (> 400 kB) VDE 0303-T30
flame retardance: V0 0.03 in (0.8 mm) UL 94
Net Weight: 0.29 oz (8.2 g)
range compatibility: Prisma G;Prisma P;Prisma PH;Prisma Pack;Spacial;Kaedra;Pragma;TeSys;Thalassa Thalassa TBP;Thalassa Thalassa TBS
Product Compatibility: Spacial enclosures
Product Certifications: IEC-Ex;DNV;GL;ATEX;VDE;CSA;cURus;EAC;LR
dielectric strength: 1000 V IEC 60243-1
ambient air temperature for operation: -40…266 °F (-40…130 °C) IEC 60216-1;-40…266 °F (-40…130 °C) VDE 0304-T21
Category: 21715-IEC TERMINAL BLOCKS-NSY;AM1;DF6;GK1
Discount Schedule: CP5
GTIN: 3606480531804
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 2.76 in (7 cm)
Package 1 Length: 10.04 in (25.5 cm)
Package 1 Weight: 0.25 oz (7 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 50
Package 2 Height: 1.97 in (5 cm)
Package 2 Width: 2.76 in (7 cm)
Package 2 Length: 10.04 in (25.5 cm)
Package 2 Weight: 13.93 oz (395 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 1350
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 24.60 lb(US) (11.158 kg)
Warranty: 18 months

Documents: NSYTRV22BL
