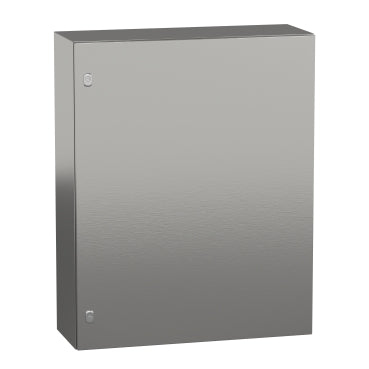

SPACIAL S3X stainless 304L, Scotch Brite finish, H1000xW800xD300 mm.

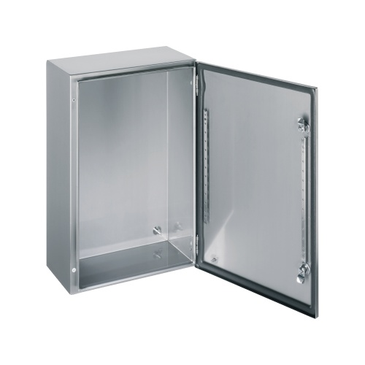

Spacial S3X compact steel enclosure with plain front door. 1000 x 800 x 300 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. 2 points door locking system with handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.Specifications
- range
- Spacial
- product name
- Spacial S3X
- enclosure type
- Multi-purpose
- category
- Compact enclosure
- nominal height
- 39.37 in (1000 mm)
- nominal width
- 31.50 in (800 mm)
- nominal depth
- 11.81 in (300 mm)
- product installation
- Wall-mounting
- device composition
- 1 body;1 reinforcement frame drilled door;1 door;2 lock door
- body type
- Single piece body;cross-shaped structure;Gutter shaped front rail
- door type
- Solid
- number of doors
- Front face 1
- door opening side
- Reversible 120 °)
- lock type
- 2 points lock;3 mm double-bar
- mounting plate description
- Without mounting plate
- type of gland plate
- Without gland plate
- accessibility for operation
- Front
- removable parts
- Door by hinges
- material
- Body and door stainless steel 304L;Lock zamak;Hinge stainless steel
- surface finish
- Body and door Scotch-Brite® brushed;Lock chromium plated
- Net Weight
- 82.45 lb(US) (37.4 kg)
- Standards
- IEC 62208
- Product Certifications
- UL 508 type A;CAN/CSA 22
- IP degree of protection
- IP66 IEC 60529
- IK degree of protection
- IK10 IEC 62262
- environmental characteristic
- Corrosive;Specific hygiene
- Category
- 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
- Discount Schedule
- ES1
- GTIN
- 3606480154966
- Returnability
- Yes
- Country of origin
- BG
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 40.16 in (102.006 cm)
- Package 1 Width
- 12.80 in (32.512 cm)
- Package 1 Length
- 32.09 in (81.508 cm)
- Package 1 Weight
- 82.45 lb(US) (37.399 kg)
- Warranty
- 18 months
