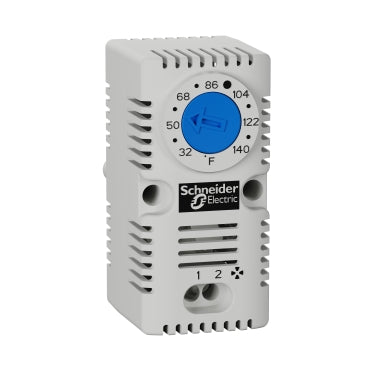

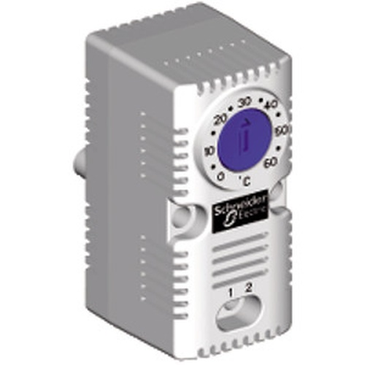

NSYCCOTHOF | ClimaSys CC Simple Thermostat, 250V, 32 to 140 deg. F, NO, 68mm H x 33mm W x 44mm D, IP20, Light Grey | Square D

Brand: Square DSKU: NSYCCOTHOF

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYCCOTHOF

Jump to: Overview & Specifications Reviews

Overview Details for NSYCCOTHOF

ClimaSys CC Simple Thermostat, 250V, 32 to 140 deg. F, NO, 68mm H x 33mm W x 44mm D, IP20, Light Grey

ClimaSys CC Simple Thermostat

Product or Component Type: Simple Thermostat
Dimensions: H68xW33xD44mm
Sensor Type: Bimetal
Contacts Type and Composition: NO
Electrical Connection: 4 terminals 2.5mm
Degree of Protection: IP20
Color: Light Grey

Specifications

range: ClimaSys
product name: ClimaSys CC
Product or Component Type: Simple thermostat
temperature setting range: 32…140 °F (0…60 °C)
Information Displayed: Temperature in °F
input voltage: 250 V
Sensor Type: Bimetal
contacts type and composition: NO
contact resistance: 10 mOhm
Service Life in Cycles: 100000 cycles
maximum switching capacity: 2 A 120...250 V AC inductive 0.6;10 A 250 V AC resistive;15 A 120 V AC resistive;30 W DC
electrical connection: 4 terminals 2.5 mm²
Mounting Mode: Clipped
height: External 2.68 in (68 mm)
width: External 1.30 in (33 mm)
depth: External 1.73 in (44 mm)
Net Weight: 1.41 oz (40 g)
Mounting Location: Spacial upright;35 mm DIN rail;On mounting plate;Cross rails
Ambient air temperature for operation: -4…176 °F (-20…80 °C)
IP Degree of Protection: IP20
hysteresis: 7 %
number of outputs: 1 ventilation function
Material: PC
Color: Light gray
flame retardance: Self-extinguishing conforming to UL94 (material V0)
Product Certifications: UL
Category: 80036-ENCLOSURE SYSTEMS ACCESSORIES
Discount Schedule: ES1
GTIN: 3606480152535
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.36 in (6 cm)
Package 1 Width: 1.57 in (4 cm)
Package 1 Length: 1.38 in (3.5 cm)
Package 1 Weight: 2.12 oz (60 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 1
Package 2 Height: 1.57 in (4 cm)
Package 2 Width: 1.97 in (5 cm)
Package 2 Length: 2.36 in (6 cm)
Package 2 Weight: 2.12 oz (60 g)
Warranty: 18 months
