NSYCCOTHDF | ClimaSys CC, double thermostat 250V, range of temperature 0…60 deg C, 1NO/NC, deg F | Square D

Brand: Square DSKU: NSYCCOTHDF

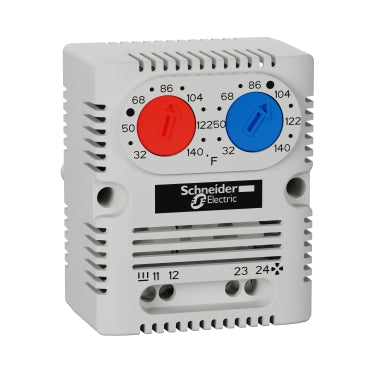

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYCCOTHDF

Jump to: Overview & Specifications Reviews

Overview Details for NSYCCOTHDF

ClimaSys CC, double thermostat 250V, range of temperature 0…60 deg C, 1NO/NC, deg F

Specifications

range: ClimaSys
product name: ClimaSys CC
Product or Component Type: Double thermostat
temperature setting range: 32…140 °F (0…60 °C)
Information Displayed: Temperature in °F
input voltage: 250 V
Sensor Type: Bimetal
contacts type and composition: 1 NO/NC
contact resistance: 10 mOhm
Service Life in Cycles: 100000 cycles
maximum switching capacity: 2 A 120...250 V AC inductive 0.6;10 A 250 V AC resistive;15 A 120 V AC resistive;30 W DC
electrical connection: 4 terminals 2.5 mm²
Mounting Mode: Clipped
height: External 2.68 in (68 mm)
width: External 2.20 in (56 mm)
depth: External 1.73 in (44 mm)
Net Weight: 1.41 oz (40 g)
Mounting Location: On mounting plate;35 mm DIN rail;Spacial upright;Cross rails
Ambient Air Temperature for Operation: -4…176 °F (-20…80 °C)
IP Degree of Protection: IP20
hysteresis: 7 %
number of outputs: 1 heating function;1 ventilation function
Material: PC
Color: Light gray
flame retardance: Self-extinguishing conforming to UL94 (material V0)
Product Certifications: UL
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480152542
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.36 in (6.0 cm)
Package 1 Width: 2.76 in (7.0 cm)
Package 1 Length: 3.15 in (8.0 cm)
Package 1 Weight: 3.67 oz (104.0 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 75
Package 2 Height: 15.75 in (40.0 cm)
Package 2 Width: 15.75 in (40.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 17.20 lb(US) (7.8 kg)
Warranty: 18 months
