M9F42102 | Multi 9 Miniature Circuit Breaker, 2A, 1-Pole, 10kA, C Curve, 277 V | Square D by Schneider Electric

Brand: Square DSKU: M9F42102

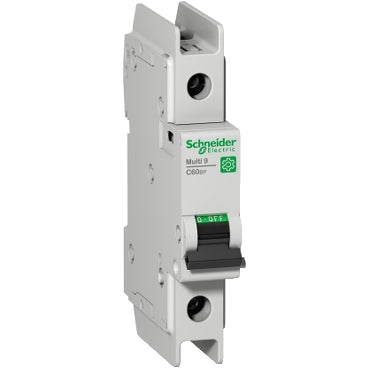

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to M9F42102

Jump to: Overview & Specifications Reviews

Overview Details for M9F42102

Multi 9 Miniature Circuit Breaker, 2A, 1-Pole, 10kA, C Curve, 277 V

Multi 9 Miniature Circuit Breaker

Rated Current: 2A
Number of Poles: 1-Pole
Break Capacity: icu 10 kA at 240 V AC conforming to EN/IEC 60947-2
System Voltage : 240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 60 V DC.
Curve code : C
Degree of Protection: IP40 for modular enclosure conforming to IEC 60529; IP20 conforming to IEC 60529

This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 2A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Specifications

range: Multi 9
product name: Multi 9 C60
Product or Component Type: Miniature circuit-breaker
device short name: C60BP
Device Application: Distribution
poles description: 1P
number of protected poles: 1
Line Rated Current: 2 A 77 °F (25 °C) EN/IEC 60947-2
network type: DC;AC
trip unit technology: Thermal-magnetic
curve code: C
breaking capacity: 3 kA Icu 415 V AC EN/IEC 60947-2;10 kA Icu 240 V AC EN/IEC 60947-2;20 kA Icu 60 V DC EN/IEC 60947-2;3 kA Icu 415 V AC GB 14048.2;10 kA Icu 240 V AC GB 14048.2;20 kA Icu 60 V DC GB 14048.2;10 kA AIR 277 V AC UL 489;14 kA AIR 240 V AC UL 489;14 kA AIR 120 V AC UL 489;10 kA AIR 60 V DC UL 489;10 kA AIR 277 V AC CSA C22.2 No 5;14 kA AIR 240 V AC CSA C22.2 No 5;14 kA AIR 120 V AC CSA C22.2 No 5;10 kA AIR 60 V DC CSA C22.2 No 5
suitability for isolation: Yes EN/IEC 60947-2
Standards: EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5
product certifications: IEC;CCC;CSA;UL
[Ue] rated operational voltage: 240 V AC 50/60 Hz;415 V AC 50/60 Hz;60 V DC
magnetic tripping limit: 8.5 x In +/- 20 % AC;12 x In +/- 20 % DC
[Ics] rated service breaking capacity: 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC;7.5 kA 75 % EN/IEC 60947-2 - 240 V AC;2.25 kA 75 % GB 14048.2 - 415 V AC;7.5 kA 75 % GB 14048.2 - 240 V AC;15 kA 75 % GB 14048.2 - 60 V DC;15 kA 75 % EN/IEC 60947-2 - 60 V DC
[Ui] rated insulation voltage: 500 V AC EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kVEN/IEC 60947-2
contact position indicator: Yes
Control Type: Toggle
local signalling: ON/OFF indication
Mounting Mode: Clip-on
Mounting Support: DIN rail
9 mm pitches: 2
Height: 4.06 in (103 mm)
Width: 0.71 in (18 mm)
Depth: 2.83 in (72 mm)
color: Gray
mechanical durability: 20000 cycles
electrical durability: 10000 cycles
provision for padlocking: Padlockable
connections - terminals: Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible
wire stripping length: 0.55 in (14 mm) top or bottom
tightening torque: 22.13 lbf.in (2.5 N.m) top or bottom
earth-leakage protection: Without
IP degree of protection: IP20 conforming to IEC 60529;IP40 (modular enclosure) conforming to IEC 60529
pollution degree: 3 EN/IEC 60947-2
tropicalisation: 2 IEC 60068-1
relative humidity: 95 % 131 °F (55 °C)
Operating altitude: 0...6561.68 ft (0...2000 m)
ambient air temperature for operation: -22…158 °F (-30…70 °C)
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
Category: 00949-M9 GEN 2 CB UL489
Discount Schedule: DE2
GTIN: 3606481169662
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.71 in (1.8 cm)
Package 1 Width: 2.95 in (7.5 cm)
Package 1 Length: 4.06 in (10.3 cm)
Package 1 Weight: 4.34 oz (123 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 12
Package 2 Height: 3.27 in (8.3 cm)
Package 2 Width: 4.25 in (10.8 cm)
Package 2 Length: 8.66 in (22 cm)
Package 2 Weight: 3.39 lb(US) (1.536 kg)
Unit Type of Package 3: S03
Number of Units in Package 3: 108
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 31.62 lb(US) (14.342 kg)
