Details for METSECTR30500

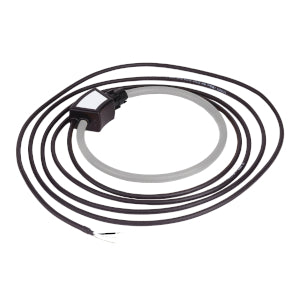

PowerLogic Ropestyle current tranformer, 5000 A, d=96 mm, lead=2.4 m

This flexible core current transducer, designed for retrofit installation, has a line rated current of 50A to 5000A. The coil can be wrapped around a maximum cable outer diameter of 96mm. Measurement accuracy plus or minus 1% from 50A to 5000A. A flying lead of 2.4 meters is available to connect the transducer to a meter. This product received the cURus certification, and is UL recognized.

Specifications

Range: PowerLogic
Product or component type: Current transducer
accessory / separate part category: Measurement accessory
Range compatibility: Acti 9 (Acti9 iEM3000) iEM3555
Acti 9 (Acti9 iEM3000) iEM3565
PowerLogic (PowerLogic EM4200) EM4235
PowerLogic (PowerLogic EM4200) EM4236
PowerLogic (PowerLogic EM3500) EM3502A
PowerLogic (PowerLogic EM3500) EM3550A
PowerLogic (PowerLogic EM3500) EM3555A
PowerLogic (PowerLogic EM3500) EM3560A
PowerLogic (PowerLogic EM3500) EM3561A
current transformer type: Flexible core
Electrical connection: Flying lead: 2.4 m600 V
Measurement current: 50…5000 A
Network frequency: 50 Hz
Frequency measurement range: 50…1500 Hz
Measurement accuracy: 1 %
installation category: IV
Pollution degree: 2
Thickness: 8 mm
Height: 300 mm opened:
Diameter: Closed: 96 mm
IP degree of protection: IP67
Standards: EN 61010-2-032
UL 61010-2-032
UL 61010-1
EN 61010-1
ANSI/IEEE C57.13
product certifications: UL recognized
CE
cURus
Relative humidity: 0…95 %
Ambient air temperature for operation: -15…60 °C
Ambient air temperature for storage: -40…70 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.800 cm
Package 1 Width: 23.000 cm
Package 1 Length: 32.000 cm
Package 1 Weight: 158.000 g
Unit Type of Package 2: S03
Number of Units in Package 2: 25
Package 2 Height: 30.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 3.950 kg
