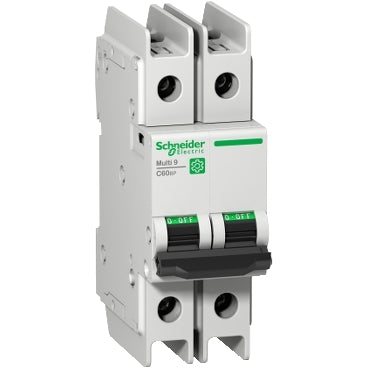

Multi9 C60BP 2P C 4A 10kA 480Y/277V UL48
Multi 9 - C60BP Miniature circuit-breaker, 2P, 4 A, C Curve, 480Y/277 V, 10 kA, UL 489- Range : Multi 9
- Product name : Multi 9 C60
- Product or component type : Miniature circuit-breaker
- Device short name : C60BP
Device application : Distribution - Poles description : 2P
- Number of protected poles : 2
- Rated current : 4 A
- Network type : DC / AC
- Trip unit technology : Thermal-magnetic
- Curve code : C
- Breaking capacity : 6 kA Icu at 440 V AC conforming to EN/IEC 60947-2
Specifications
- range
- Multi 9
- product name
- Multi 9 C60
- Product or Component Type
- Miniature circuit-breaker
- device short name
- C60BP
- Device Application
- Distribution
- poles description
- 2P
- number of protected poles
- 2
- Line Rated Current
- 4 A 77 °F (25 °C) EN/IEC 60947-2
- network type
- DC;AC
- trip unit technology
- Thermal-magnetic
- curve code
- C
- breaking capacity
- 6 kA Icu 440 V AC EN/IEC 60947-2;10 kA Icu 415 V AC EN/IEC 60947-2;20 kA Icu 240 V AC EN/IEC 60947-2;6 kA Icu 440 V AC GB 14048.2;10 kA Icu 415 V AC GB 14048.2;20 kA Icu 240 V AC GB 14048.2;14 kA AIR 240 V AC UL 489;10 kA AIR 125 V DC UL 489;10 kA AIR 480Y/277 V AC UL 489;14 kA AIR 240 V AC CSA C22.2 No 5;10 kA AIR 480Y/277 V AC CSA C22.2 No 5;10 kA AIR 125 V DC CSA C22.2 No 5
- suitability for isolation
- Yes EN/IEC 60947-2
- Standards
- EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5
- product certifications
- IEC;CCC;CSA;UL
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz
- magnetic tripping limit
- 8.5 x In +/- 20 % AC;12 x In +/- 20 % DC
- [Ics] rated service breaking capacity
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC;7.5 kA 75 % EN/IEC 60947-2 - 415 V AC;15 kA 75 % EN/IEC 60947-2 - 240 V AC;4.5 kA 75 % GB 14048.2 - 440 V AC;7.5 kA 75 % GB 14048.2 - 415 V AC;15 kA 75 % GB 14048.2 - 240 V AC
- [Ui] rated insulation voltage
- 500 V AC EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kVEN/IEC 60947-2
- contact position indicator
- Yes
- Control Type
- Toggle
- local signalling
- ON/OFF indication
- Mounting Mode
- Clip-on
- Mounting Support
- DIN rail
- 9 mm pitches
- 4
- Height
- 4.06 in (103 mm)
- Width
- 1.42 in (36 mm)
- Depth
- 2.83 in (72 mm)
- color
- Gray
- mechanical durability
- 20000 cycles
- electrical durability
- 10000 cycles
- provision for padlocking
- Padlockable
- connections - terminals
- Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible
- wire stripping length
- 0.55 in (14 mm) top or bottom
- tightening torque
- 22.13 lbf.in (2.5 N.m) top or bottom
- earth-leakage protection
- Without
- IP degree of protection
- IP20 conforming to IEC 60529;IP40 (modular enclosure) conforming to IEC 60529
- pollution degree
- 3 EN/IEC 60947-2
- tropicalisation
- 2 IEC 60068-1
- relative humidity
- 95 % 131 °F (55 °C)
- Operating altitude
- 0...6561.68 ft (0...2000 m)
- ambient air temperature for operation
- -22…158 °F (-30…70 °C)
- Ambient Air Temperature for Storage
- -40…176 °F (-40…80 °C)
- Category
- 00949-M9 GEN 2 CB UL489
- Discount Schedule
- DE2
- GTIN
- 3606481169822
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.42 in (3.6 cm)
- Package 1 Width
- 2.95 in (7.5 cm)
- Package 1 Length
- 4.06 in (10.3 cm)
- Package 1 Weight
- 8.64 oz (245 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 6
- Package 2 Height
- 3.27 in (8.3 cm)
- Package 2 Width
- 4.25 in (10.8 cm)
- Package 2 Length
- 8.66 in (22 cm)
- Package 2 Weight
- 3.38 lb(US) (1.533 kg)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 54
- Package 3 Height
- 11.81 in (30 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 31.49 lb(US) (14.284 kg)
