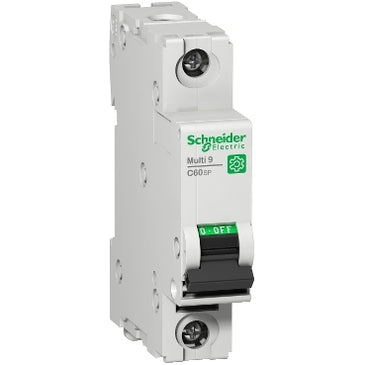

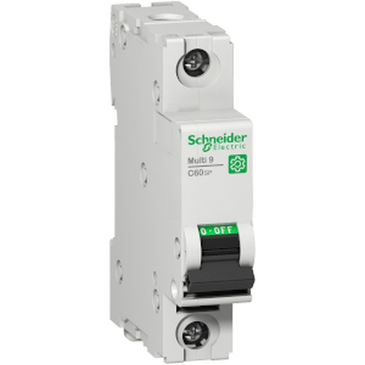

M9F22120 | MULTI 9 MINIATURE CIRCUIT-BREAKER, 1P, 20 A, C CURVE, 277 V, 10 KA, UL 1077 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M9F22120
Documents and manuals
Square D M9F22120 Documents
Overview
Details for M9F22120
MULTI 9 MINIATURE CIRCUIT-BREAKER, 1P, 20 A, C CURVE, 277 V, 10 KA, UL 1077
MULTI 9 MINIATURE CIRCUIT-BREAKER- Poles description : 1P
- number of protected poles :1
- Rated current : 20 A at 25 °C conforming to EN/IEC 60947-2
- Network type : AC, DC
- Trip unit technology : Thermal-magnetic
- curve code :C
Specifications
- range
- Multi 9
- product name
- Multi 9 C60
- Product or Component Type
- Miniature circuit-breaker
- device short name
- C60SP
- Device Application
- Distribution
- poles description
- 1P
- number of protected poles
- 1
- Line Rated Current
- 20 A 77 °F (25 °C) EN/IEC 60947-2
- network type
- DC;AC
- trip unit technology
- Thermal-magnetic
- curve code
- C
- breaking capacity
- 10 kA AIR 277 V AC UL 1077;14 kA AIR 240 V AC UL 1077;14 kA AIR 120 V AC UL 1077;10 kA AIR 65 V DC UL 1077;10 kA AIR 277 V AC CSA C22.2 No 235;14 kA AIR 240 V AC CSA C22.2 No 235;14 kA AIR 120 V AC CSA C22.2 No 235;10 kA AIR 65 V DC CSA C22.2 No 235;3 kA Icu 415 V AC EN/IEC 60947-2;10 kA Icu 240 V AC EN/IEC 60947-2;20 kA Icu 60 V DC EN/IEC 60947-2;3 kA Icu 415 V AC GB 14048.2;10 kA Icu 240 V AC GB 14048.2;20 kA Icu 60 V DC GB 14048.2
- suitability for isolation
- Yes EN/IEC 60947-2
- Standards
- EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235
- product certifications
- IEC;CCC;UR;CSA
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz;415 V AC 50/60 Hz;60 V DC
- magnetic tripping limit
- 8.5 x In +/- 20 % AC;12 x In +/- 20 % DC
- [Ics] rated service breaking capacity
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC;7.5 kA 75 % EN/IEC 60947-2 - 240 V AC;20 kA 100 % EN/IEC 60947-2 - 60 V DC;2.25 kA 75 % GB 14048.2 - 415 V AC;7.5 kA 75 % GB 14048.2 - 240 V AC;20 kA 100 % GB 14048.2 - 60 V DC
- [Ui] rated insulation voltage
- 500 V AC EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kVEN/IEC 60947-2
- contact position indicator
- Yes
- Control Type
- Toggle
- local signalling
- ON/OFF indication
- Mounting Mode
- Clip-on
- Mounting Support
- DIN rail
- 9 mm pitches
- 2
- Height
- 3.19 in (81 mm)
- Width
- 0.71 in (18 mm)
- Depth
- 2.83 in (72 mm)
- color
- Gray
- mechanical durability
- 20000 cycles
- electrical durability
- 10000 cycles
- provision for padlocking
- Padlockable
- connections - terminals
- Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible
- wire stripping length
- 0.55 in (14 mm) top or bottom
- tightening torque
- 22.13 lbf.in (2.5 N.m) top or bottom
- earth-leakage protection
- Without
- IP degree of protection
- IP20 conforming to IEC 60529;IP40 (modular enclosure) conforming to IEC 60529
- pollution degree
- 3 EN/IEC 60947-2
- tropicalisation
- 2 IEC 60068-1
- relative humidity
- 95 % 131 °F (55 °C)
- Operating altitude
- 0...6561.68 ft (0...2000 m)
- ambient air temperature for operation
- -22…158 °F (-30…70 °C)
- Ambient Air Temperature for Storage
- -40…176 °F (-40…80 °C)
- Category
- 00948-M9 GEN 2 CB UL1077 / IEC
- Discount Schedule
- DE2
- GTIN
- 3606481168177
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.71 in (1.8 cm)
- Package 1 Width
- 2.95 in (7.5 cm)
- Package 1 Length
- 3.35 in (8.5 cm)
- Package 1 Weight
- 3.99 oz (113.0 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 12
- Package 2 Height
- 3.15 in (8.0 cm)
- Package 2 Width
- 3.46 in (8.8 cm)
- Package 2 Length
- 8.86 in (22.5 cm)
- Package 2 Weight
- 3.11 lb(US) (1.411 kg)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 144
- Package 3 Height
- 11.81 in (30.0 cm)
- Package 3 Width
- 11.81 in (30.0 cm)
- Package 3 Length
- 15.75 in (40.0 cm)
- Package 3 Weight
- 38.62 lb(US) (17.518 kg)
