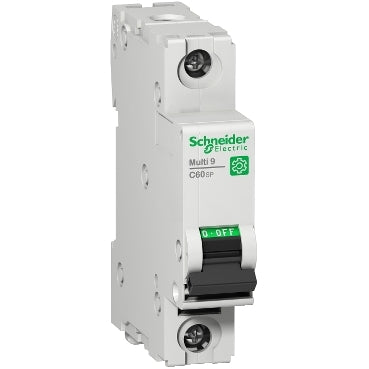

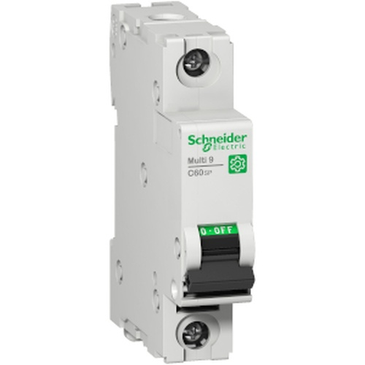

Multi 9 C60SP Miniature circuit-breaker, 1P, 4 A, B Curve, 277 V, 10 kA, UL 1077

Miniature circuit-breaker
  • Line Rated Current : 4 A
  • Number of Poles : 1 P
  • Curve code : B
  • Rated operational voltage : 277 V
  • Trip Unit Type : Thermal-magnetic
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 4A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Specifications

range
Multi 9
product name
Multi 9 C60
Product or Component Type
Miniature circuit-breaker
device short name
C60SP
Device Application
Distribution
poles description
1P
number of protected poles
1
Line Rated Current
4 A 77 °F (25 °C) EN/IEC 60947-2
network type
DC;AC
trip unit technology
Thermal-magnetic
curve code
B
breaking capacity
10 kA AIR 277 V AC UL 1077;14 kA AIR 240 V AC UL 1077;14 kA AIR 120 V AC UL 1077;10 kA AIR 65 V DC UL 1077;10 kA AIR 277 V AC CSA C22.2 No 235;14 kA AIR 240 V AC CSA C22.2 No 235;14 kA AIR 120 V AC CSA C22.2 No 235;10 kA AIR 65 V DC CSA C22.2 No 235;3 kA Icu 415 V AC EN/IEC 60947-2;10 kA Icu 240 V AC EN/IEC 60947-2;20 kA Icu 60 V DC EN/IEC 60947-2;3 kA Icu 415 V AC GB 14048.2;10 kA Icu 240 V AC GB 14048.2;20 kA Icu 60 V DC GB 14048.2
suitability for isolation
Yes EN/IEC 60947-2
Standards
EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235
product certifications
IEC;CCC;UR;CSA
[Ue] rated operational voltage
240 V AC 50/60 Hz;415 V AC 50/60 Hz;60 V DC
magnetic tripping limit
4 x In +/- 20 % AC;5.7 x In +/- 20 % DC
[Ics] rated service breaking capacity
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC;7.5 kA 75 % EN/IEC 60947-2 - 240 V AC;20 kA 100 % EN/IEC 60947-2 - 60 V DC;2.25 kA 75 % GB 14048.2 - 415 V AC;7.5 kA 75 % GB 14048.2 - 240 V AC;20 kA 100 % GB 14048.2 - 60 V DC
[Ui] rated insulation voltage
500 V AC EN/IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kVEN/IEC 60947-2
contact position indicator
Yes
Control Type
Toggle
local signalling
ON/OFF indication
Mounting Mode
Clip-on
Mounting Support
DIN rail
9 mm pitches
2
Height
3.19 in (81 mm)
Width
0.71 in (18 mm)
Depth
2.83 in (72 mm)
color
Gray
mechanical durability
20000 cycles
electrical durability
10000 cycles
provision for padlocking
Padlockable
connections - terminals
Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule;Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible
wire stripping length
0.55 in (14 mm) top or bottom
tightening torque
22.13 lbf.in (2.5 N.m) top or bottom
earth-leakage protection
Without
IP degree of protection
IP20 conforming to IEC 60529;IP40 (modular enclosure) conforming to IEC 60529
pollution degree
3 EN/IEC 60947-2
tropicalisation
2 IEC 60068-1
relative humidity
95 % 131 °F (55 °C)
Operating altitude
0...6561.68 ft (0...2000 m)
ambient air temperature for operation
-22…158 °F (-30…70 °C)
Ambient Air Temperature for Storage
-40…176 °F (-40…80 °C)
Category
00948-M9 GEN 2 CB UL1077 / IEC
Discount Schedule
DE2
GTIN
3606481167637
Returnability
Yes
Country of origin
FR
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.71 in (1.8 cm)
Package 1 Width
2.95 in (7.5 cm)
Package 1 Length
3.35 in (8.5 cm)
Package 1 Weight
4.02 oz (114.0 g)
Unit Type of Package 2
BB1
Number of Units in Package 2
12
Package 2 Height
2.99 in (7.6 cm)
Package 2 Width
3.54 in (9.0 cm)
Package 2 Length
9.06 in (23.0 cm)
Package 2 Weight
3.13 lb(US) (1.42 kg)
Unit Type of Package 3
S03
Number of Units in Package 3
144
Package 3 Height
11.81 in (30.0 cm)
Package 3 Width
11.81 in (30.0 cm)
Package 3 Length
15.75 in (40.0 cm)
Package 3 Weight
38.64 lb(US) (17.527 kg)
