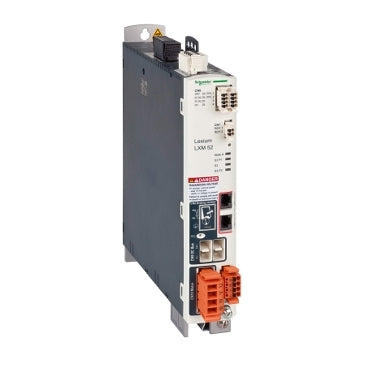

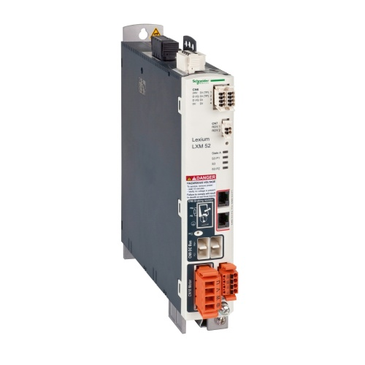

LXM52DD12C41000 | LXM52 single drive 3A/12A | Square D by Schneider Electric

Brand: Square DSKU: LXM52DD12C41000

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LXM52DD12C41000

Jump to: Overview & Specifications Reviews

Overview Details for LXM52DD12C41000

LXM52 single drive 3A/12A

This product is part of the Lexium 52 & Motors range, an offer of standalone servo drives for PacDrive 3. The single drive features SERCOS III physical interface. It offers 4 digital/4 touch probe inputs and 2 digital outputs. It is a single drive with a rated supply voltage of 208V to 480V, a continuous output current of 3A and a continuous power of 0.9kW. It is furnished with connector terminals for electrical connection. It is an IP20 rated product. It weighs 1.8kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE and UL. It meets EN/IEC 61800-5-1, UL 508C and EN/IEC 61800-3 standards. This product is compatible with servo motor SH3 (55mm, 3 motor stacks), servo motor SH3 (70mm, 1 motor stack) and servo motor SH3 (70mm, 2 motor stacks). Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Specifications

Range of Product: PacDrive 3
Product or Component Type: Single drive
device short name: LXM 52
product compatibility: Servo motor SH3 2.17 in (55 mm);3 optimized in terms of torque and speed;Servo motor SH3 2.76 in (70 mm);1 optimized in terms of torque and speed;Servo motor SH3 2.76 in (70 mm);2 optimized in terms of torque and speed;Servo motor SH3 2.76 in (70 mm);3 optimized in terms of high torque;Servo motor SH3 3.94 in (100 mm);1 optimized in terms of high torque;Servo motor SH3 3.94 in (100 mm);2 optimized in terms of high torque;Servo motor MH3 2.76 in (70 mm);2 optimized in terms of torque and speed;Servo motor MH3 2.76 in (70 mm);3 optimized in terms of torque and speed;Servo motor MH3 3.94 in (100 mm);1 optimized in terms of torque and speed;Servo motor SHS 3.94 in (100 mm);1 optimized in terms of torque and speed
Phase: 3 phase
[Us] rated supply voltage: 208...480 V
supply frequency: 50...60 Hz - 5...5 %
continuous output current: 3 A 8 kHz
output current 3s peak: 12 A
continuous power: 1.6 kW
nominal power: 0.9 kW
overvoltage category: III
electrical connection: Terminal 0.75...5.3 mm²;AWG 18...AWG 10 CN1);Terminal 0.75...5.3 mm²;AWG 18...AWG 10 CN10)
tightening torque: CN1 6.02 lbf.in (0.68 N.m);CN10 6.02 lbf.in (0.68 N.m)
number of inputs: 4 digital;4 touch probe
discrete input voltage: 24 V DC
number of outputs: 2 digital
discrete output voltage: 24 V DC
contact bounce time: > 1 ms compliment of STO-A;compliment of STO-B
physical interface: SERCOS III
Net Weight: 3.97 lb(US) (1.8 kg)
Standards: EN/IEC 61800-5-1;UL 508C;EN/IEC 61800-3
Product Certifications: UL;CE
IP degree of protection: IP20 EN/IEC 60721-3-3
vibration resistance: 10 m/s²EN/IEC 60721-3-3
shock resistance: 100 m/s² EN/IEC 60721-3-3
pollution degree: 2
environmental characteristic: 3K3 IEC 60721-3-3
Relative humidity: 5…95 %
Ambient air temperature for operation: 32…122 °F (0…50 °C)
Category: 18355-PACDRIVE3 LEXIM52 SERVO DRIVES
Discount Schedule: PC52
GTIN: 00785901789574
Returnability: No
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.35 in (8.5 cm)
Package 1 Width: 10.83 in (27.5 cm)
Package 1 Length: 12.80 in (32.5 cm)
Package 1 Weight: 5.07 lb(US) (2.3 kg)
Unit Type of Package 2: S03
Number of Units in Package 2: 3
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 16.83 lb(US) (7.636 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 24
Package 3 Height: 31.50 in (80 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 147.71 lb(US) (67 kg)
Warranty: 18 months
