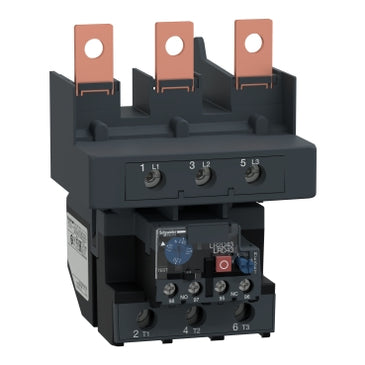

LRD4369 | TeSys LRD thermal overload relays, 110...140 A, class 10A | Square D by Schneider Electric

Brand: Square DSKU: LRD4369

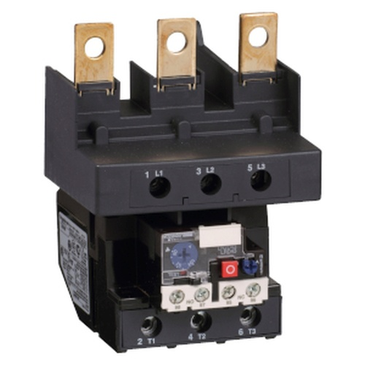

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LRD4369

Jump to: Overview & Specifications Reviews

Overview Details for LRD4369

TeSys LRD thermal overload relays, 110...140 A, class 10A

LRD4369 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 63kW@400V thanks to a thermal range 110-140A, a tripping class 10A and phase unbalance protection. LRD4369 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 110-140A, a tripping class 10A and phase unbalance detection, it protects motors 63kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D150 to form a compact starter. Light and compact, 120mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Specifications

range: TeSys
product name: TeSys LRD;TeSys Deca
Product or Component Type: Differential thermal overload relay
device short name: LRD
relay application: Motor protection
Product Compatibility: LC1D150
network type: DC;AC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 110…140 A
[Ui] rated insulation voltage: Power circuit 1000 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 0.06 A 440 V DC-13 signalling circuit;0.12 A 600 V AC-15 signalling circuit
[Ue] rated operational voltage: 1000 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Power circuit screw clamp terminals 1 0.01…0.05 in² (4…35 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.01…0.08 in² (4…50 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.01…0.08 in² (4…50 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 79.66 lbf.in (9 N.m) screw clamp terminals
Depth: 5.20 in (132 mm)
Net Weight: 1.98 lb(US) (0.9 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 2.2 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Product Certifications: IEC;CCC;EAC;ATEX INERIS
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110523355
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.43 in (13.8 cm)
Package 1 Width: 4.13 in (10.5 cm)
Package 1 Length: 6.10 in (15.5 cm)
Package 1 Weight: 29.38 oz (833.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 10
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 19.48 lb(US) (8.835 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 80
Package 3 Height: 29.53 in (75.0 cm)
Package 3 Width: 23.62 in (60.0 cm)
Package 3 Length: 31.50 in (80.0 cm)
Package 3 Weight: 171.26 lb(US) (77.68 kg)
Warranty: 18 months
