LR2K0310 | BIMETALLIC O/LOAD RELAY 3.7A 5 | Square D by Schneider Electric

Brand: Square DSKU: LR2K0310

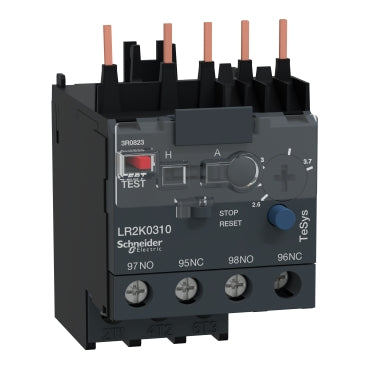

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LR2K0310

Jump to: Overview & Specifications Reviews

Overview Details for LR2K0310

BIMETALLIC O/LOAD RELAY 3.7A 5

TeSys K overload relays are designed to be used with TeSys K contactors to make a motor starter. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 2.6 to 3.7 amperes. This trip current rating is calibrated per Class 10A. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Specifications

range: TeSys
product name: TeSys LRK
Product or Component Type: Differential thermal overload relay
device short name: LR2K
relay application: Motor protection
Product Compatibility: LC7K;LP1K;LP4K;LC1K
network type: DC;AC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 2.6…3.7 A
[Ui] rated insulation voltage: Power circuit 690 V BS 4941;Power circuit 690 V IEC 60947;Power circuit 750 V VDE 0110 group C;Power circuit 600 V CSA C22.2 No 14
Network Frequency: <= 400 Hz
mounting support: Under contactor;Plate;with specific accessories;Rail;with specific accessories
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 6 A signalling circuit
[Ue] rated operational voltage: <= 690 V power circuit;690 V AC AC-15 signalling circuit;250 V DC DC-13 signalling circuit
associated fuse rating: 6 A gG signalling circuit VDE 0660;6 A gG signalling circuit IEC 60947
[Uimp] rated impulse withstand voltage: 6 kV
power dissipation per pole: 2 W
phase failure sensitivity: Yes IEC 60947-4-1
local signalling: Trip indicator Yellow)
control type: Red push-button trip test function;Blue push-button stop and manual reset;selector switch manual or automatic reset
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end
tightening torque: 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2;11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm;11.51 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.56 in (65 mm)
Net Weight: 0.32 lb(US) (0.145 kg)
Standards: IEC 60947;VDE 0660;BS 4941;NF C 63-650
Product Certifications: UL;CSA;UKCA
protective treatment: TC IEC 60068;TC DIN 50016
IP degree of protection: IP2x conforming to IEC 60529
ambient air temperature for operation: -4…131 °F (-20…55 °C) without derating IEC 60947;-22…140 °F (-30…60 °C) with derating IEC 60947
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
operating altitude: 6561.68 ft (2000 m) without derating
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
mechanical robustness: Shocks NO contact10 Gn for 11 ms IEC 60068-2-27;Shocks NC contact10 Gn for 11 ms IEC 60068-2-27;Vibrations NO contact2 Gn;5...300 Hz IEC 60068-2-6;Vibrations NC contact2 Gn;5...300 Hz IEC 60068-2-6
Category: 22324-CONTACTOR;K-LINE;OVERLOADS
Discount Schedule: I12
GTIN: 3389110230499
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5.0 cm)
Package 1 Width: 2.76 in (7.0 cm)
Package 1 Length: 3.35 in (8.5 cm)
Package 1 Weight: 5.59 oz (158.4 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 41
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 14.84 lb(US) (6.731 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 656
Package 3 Height: 29.53 in (75.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 255.08 lb(US) (115.702 kg)
Warranty: 18 months
