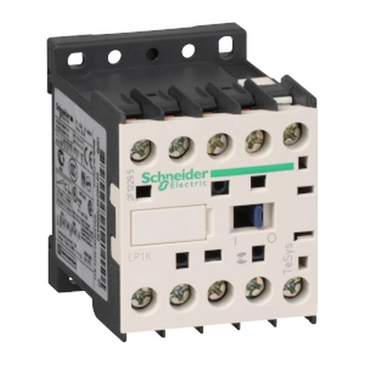

LP1K0610BD | TeSys K contactor, 3P, AC-3 <= 440 V, 6 A, 1 NO aux, 24 V DC coil | Square D by Schneider Electric

Brand: Square DSKU: LP1K0610BD

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LP1K0610BD

Jump to: Overview & Specifications Reviews

Overview Details for LP1K0610BD

TeSys K contactor, 3P, AC-3 <= 440 V, 6 A, 1 NO aux, 24 V DC coil

LP1K0610BD is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24V DC coil and 1NO auxiliary contact allowing easy integration to all control systems. LP1K0610BD is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it can be easily integrated into all control systems thanks to its 24V DC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Ready for connection to all control systems thanks to a 24V DC control voltage and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Specifications

Range of Product: TeSys K
range: TeSys
Product or Component Type: Contactor
device short name: LP1K
contactor application: Motor control
utilisation category: AC-4;AC-3;AC-3e
poles description: 3P
pole contact composition: 3 NO
[Ie] rated operational current: 6 A<= 440 V AC AC-3 power circuit;6 A<= 440 V AC AC-3e power circuit
auxiliary contact composition: 1 NO
auxiliary contacts type: Instantaneous 1 NO
control circuit voltage limits: Operational 0.8...1.15 Uc 122 °F (50 °C));Drop-out 0.1...0.75 Uc 122 °F (50 °C))
[Ui] rated insulation voltage: Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-5-1;Signalling circuit 600 V UL 508;Power circuit 600 V CSA C22.2 No 14;Signalling circuit 600 V CSA C22.2 No 14
[Uimp] rated impulse withstand voltage: 8 kV
overvoltage category: III
Mounting Support: Rail;Plate
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
tightening torque: 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
[Ue] rated operational voltage: Power circuit 690 V AC 50/60 Hz;Signalling circuit <= 690 V AC 50/60 Hz
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit;10 A 122 °F (50 °C) signalling circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947;110 A AC signalling circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit;10 A gG signalling circuit IEC 60947;10 A gG signalling circuit VDE 0660
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
inrush power in W: 3 W 68 °F (20 °C))
hold-in power consumption in W: 3 W 68 °F (20 °C)
operating time: 30...40 ms coil energisation and NO closing;10 ms coil de-energisation and NO opening
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 10 Mcycles
maximum operating rate: 3600 cyc/h
minimum switching current: 5 mA signalling circuit
minimum switching voltage: 17 V signalling circuit
insulation resistance: > 10 MOhm signalling circuit
Depth: 2.24 in (57 mm)
Net Weight: 0.50 lb(US) (0.225 kg)
Product Certifications: UL;CSA;UKCA
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
Category: 22321-CTR;K-LINE;DC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110363227
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5.000 cm)
Package 1 Width: 2.36 in (6.000 cm)
Package 1 Length: 2.56 in (6.500 cm)
Package 1 Weight: 7.87 oz (223.000 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 40
Package 2 Height: 5.91 in (15.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 20.17 lb(US) (9.151 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 640
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 31.50 in (80.000 cm)
Package 3 Length: 23.62 in (60.000 cm)
Package 3 Weight: 340.43 lb(US) (154.416 kg)
Warranty: 18 months
