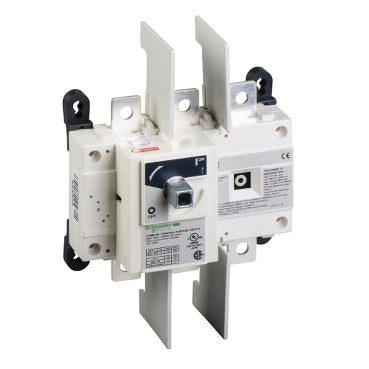

Disconnect Switch, TeSys LK, nonfusible, 200A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 200 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 75 HP rating at 240 VAC, a 150 HP rating at 480 VAC, a 200 HP rating at 600 VAC, a 15 HP rating at 125 VDC and a 15 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 200A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 6 AWG to 300 kcmil copper or aluminum wire. The disconnect switch is 6.30 inches tall, 7.09 inches wide and 3.72 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.Specifications
- range
- TeSys
- product name
- TeSys LK
- Product or Component Type
- Disconnect Switch
- disconnector device type
- Non-fusible disconnect switch
- suitability for isolation
- Yes
- poles description
- 3P
- network type
- AC;DC
- Network Frequency
- 50/60 Hz
- [Ie] rated operational current
- 200 A400 V AC AC-22A IEC;200 A400 V AC AC-23A IEC;200 A690 V AC AC-22A IEC;200 A690 V AC AC-23A IEC;200 A CSA;200 A UL
- [Ue] rated operational voltage
- 600 V AC 50/60 Hz
- [Ui] Rated Insulation Voltage
- 750 V
- Control Type
- Rotary handle
- type of operating handle
- External frontal;External right side
- Mounting Support
- Plate
- [Uimp] rated impulse withstand voltage
- 8 kV IEC
- rated power in W
- 100 kW 400 V;140 kW 500 V;185 kW 690 V
- rated power in hp
- 75 hp 240 V 92 A AC;150 hp 480 V 187 A AC;200 hp 600 V 192 A AC;15 hp 125 V 112 A DC;15 hp 250 V 56 A DC
- [Icw] rated short-time withstand current
- 32 kA
- mechanical durability
- 8000 cycles
- electrical durability
- 6000 cycles
- connections - terminals
- lugs-ring terminals 1 0.02 in² (16 mm²)
- Height
- 6.30 in (160 mm)
- Width
- 7.09 in (180 mm)
- Depth
- 3.74 in (95 mm)
- Net Weight
- 5.03 lb(US) (2.28 kg)
- Standards
- IEC 60947-3;CSA C22.2 No 4;UL98
- Product Certifications
- UL;CSA;CE
- Category
- 22640-IEC DISCONNECT-GS1;LK3
- Discount Schedule
- I11
- GTIN
- 3606480510458
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.69 in (17.0 cm)
- Package 1 Width
- 11.02 in (28.0 cm)
- Package 1 Length
- 11.02 in (28.0 cm)
- Package 1 Weight
- 4.99 lb(US) (2.264 kg)
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 4
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 15.75 in (40.0 cm)
- Package 2 Length
- 23.62 in (60.0 cm)
- Package 2 Weight
- 22.15 lb(US) (10.046 kg)
- Warranty
- 18 months
