LAD9V6 | Set of power connections, inversing busbar, for 3P reversing contactors assembly, LC1D09-D38 screw clamp terminals | Square D by Schneider Electric

Square D | LAD9V6

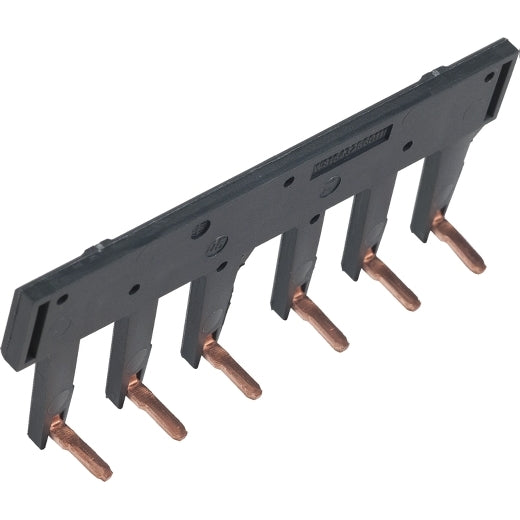

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LAD9V6
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Square D LAD9V6 Documents

Datasheet

Overview

Details for LAD9V6

Set of power connections, inversing busbar, for 3P reversing contactors assembly, LC1D09-D38 screw clamp terminals

TeSys Deca power connector, for 3-pole contactors LC1D09-D38 (with screw clamp terminals). For contactor assemblies in reversing motor starters. It provides the reverser connection of 2 contactors on motor side. Green Premium compliant (RoHS/REACh).

Specifications

Range of product
TeSys Deca
Range
TeSys
Linergy
device short name
LAD9
Product or component type
Set of connections
Poles description
3P
electrical circuit type
Reversing contactor
Range compatibility
TeSys (TeSys D)
TeSys (TeSys Deca)
Product compatibility
LC1D09
LC1D12
LC1D18
LC1D25
LC1D32
LC1D38
Mounting location
Downstream
Connections - terminals
Screw clamp terminals
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.800 cm
Package 1 Width
5.000 cm
Package 1 Length
2.000 cm
Package 1 Weight
27.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
9.800 cm
Package 2 Width
9.800 cm
Package 2 Length
15.000 cm
Package 2 Weight
302.000 g
Unit Type of Package 3
S03
Number of Units in Package 3
140
Package 3 Height
30.000 cm
Package 3 Width
30.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
4.600 kg
Warranty
18 months
